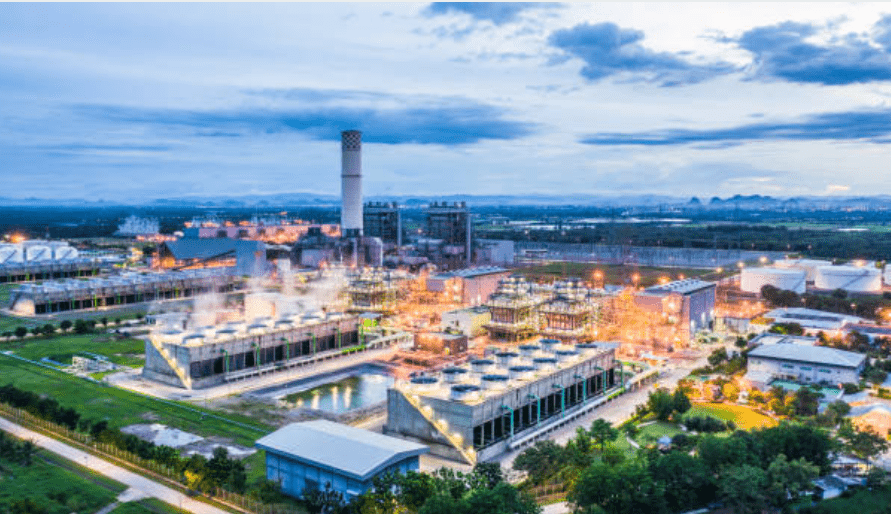

A Comprehensive Overview Of Thermal Power Plants
Thermal power plants are those that use heat energy to generate electricity. Burning fossil fuels like coal, natural gas, or oil is how this process is carried out, however biomass and other renewable energy sources can also be utilized. A significant amount of the electricity produced worldwide is produced by thermal power plants. The fundamental idea behind thermal power generation is that heat is used to transform water into steam, which powers a turbine that is connected to a generator to provide electricity.
Which components are used in Thermal power plants?
One of the most crucial components of a thermal power plant is the boiler. It is often referred to as the backbone of thermal power plants at times. It is a big vessel that generates heat by burning fuel. Under high pressure, this heat is used to turn water into steam. Burners, air preheaters, and economizers are some of the parts that make up the boiler, and they all cooperate to guarantee an effective combustion process.
In boilers, water is heated to produce steam. The steam generated in the boilers is directed toward the turbine blades. On the opposite side of the turbine is an alternator. The steam turbine revolves when steam strikes its blades. Electrical energy is produced by the alternator, which revolves in tandem with the turbine.
The generator:
The steam turbine is linked to the generator. Through electromagnetic induction, the generator’s rotor revolves in tandem with the turbine’s rotation, producing energy. The grid station receives the power produced in this manner.
Cooling system:
The steam needs to be cooled and re-condensed into water after going through the turbine so that it may be used again in the boiler. In order to absorb heat from the steam and condense it into a liquid, cold water flows in a cooling tower.
System for supplying fuel:
For combustion, a thermal power plant needs a steady supply of fuel. This system makes sure that the right procedures are in place for both feeding and storing the fuel that is used in boilers. Conveyors and crushers for fuel preparation may be part of the fuel supply system for coal-fired facilities.
System for treating flue gases:
Pollutants such as sulphur dioxide (SO₂), nitrogen oxides (NOₓ), and particulates are produced when fossil fuels burn. Scrubbers, electrostatic precipitators, and selective catalytic reduction (SCR) units are examples of flue gas treatment technologies installed in contemporary thermal plants to lower hazardous emissions and satisfy environmental regulations.
Thermal power plant working Principle
The Rankine cycle, a thermodynamic cycle in which water is heated to create steam that is then expanded by a turbine, is the foundation of a thermal power plant’s operation. Thermal energy is transformed into mechanical energy by this steam turbine. The detailed procedure is as follows:
Combustion of fuel:
In a boiler, heat is produced by burning fossil fuels like coal, oil, or natural gas.
Heating using water:
In a boiler, water is heated by fire to produce steam under high pressure.
expansion of steam:
After entering a turbine, the high-pressure steam expands and powers the turbine blades, turning the rotor.
Energy transformation:
The mechanical energy of the rotating turbine is transformed into electrical energy by means of a generator.
Condensation and cooling:
The steam is cooled in a condenser after going through the turbine, where it transforms back into water.
Reusing:
The cycle is repeated by pumping the condensed water back to the boiler for reheating.
How many types of Thermal Power Plants?
1-Thermal power stations that use coal
Thermal power stations, also known as coal fired power plants, are among the most widely used forms of electricity generation worldwide. These plants play a vital role in meeting the energy needs of industries, businesses, and households, providing a significant portion of the world’s electrical power. Despite the increasing shift toward renewable energy sources, coal-fired thermal stations remain dominant due to their reliability, efficiency, and established infrastructure.
The heat source in a coal fired thermal station is the combustion of coal, which produces steam. This steam drives a turbine connected to a generator, ultimately generating electricity.
Power Generation Process in Coal Fired Thermal Power Stations
The power generation process in coal-fired thermal power stations involves several major steps:
Coal handling: Coal is transported to the plant in bulk often by train, truck, or barge and stored in large coal yards. It is then fed into crushers, which break it into smaller pieces for easy combustion.
Coal pulverization: The crushed coal is sent to a pulverizer where it is ground into a fine powder. The pulverized coal is then blown into a furnace where combustion occurs.
Combustion and heat generation: The pulverized coal is burned in a furnace at high temperatures typically between 1,300°C and 1,500°C. The combustion of coal produces a large amount of heat which heats the water in the boiler.
Steam generation: The hot water produces steam under high pressure. This steam is piped to a steam turbine where it is used to turn the turbine blades causing it to spin.
Condensation and cooling: After passing through the turbine, the steam is cooled in a condenser which turns it back into water. The water is then returned to the boiler to be reheated creating a continuous cycle. The cooling process often involves the use of cooling towers large reservoirs of water or air cooled systems.
Components of a Coal Fired Thermal Power Plant
A coal fired thermal power plant consists of several major components that work together to produce electricity:
Boiler: A large vessel where coal is burned to heat water. A boiler consists of a series of tubes through which water circulates and is heated into steam.
Turbine: A device that converts the thermal energy of steam into mechanical energy. The blades of the turbine turn according to the pressure and speed of the steam passing through them.
Generator: The component that converts the mechanical energy from the turbine into electrical energy through electromagnetic induction.
Cooling tower: Used to remove excess heat from the system. Water used in the cooling process is often circulated through cooling towers where it is cooled by evaporation and then returned to the condenser.
Fuel handling system: Includes coal crushers, pulverizers and conveyors that transport coal to the furnace for combustion.
Ash disposal system: Coal combustion produces ash as a byproduct, which must be handled and disposed of. Some plants use the ash for construction purposes, while others store it in a landfill.
Advantages of coal-fired thermal power plants
Reliability: Coal-fired power plants are highly reliable and can provide continuous power, unlike some renewable sources such as solar and wind, which operate intermittently.
Infrastructure and technology: Coal power stations have been operating for over a century and most of the technology is well established and understood. This allows for easy maintenance and upgrades.
Energy security: Many countries, especially those with abundant coal reserves rely on coal for domestic electricity generation reducing their dependence on foreign energy sources.
Cost effective: Coal is one of the most affordable energy sources available in many parts of the world, making coal fired power plants relatively inexpensive in terms of electricity production.
Challenges and environmental concerns
While coal fired thermal power stations are essential to meeting energy needs they come with significant challenges and environmental concerns:
Air pollution: The combustion of coal releases harmful pollutants into the air, including carbon dioxide (CO2), sulfur dioxide (SO2), nitrogen oxides (NOx), and particulate matter. These emissions contribute significantly to air pollution, acid rain, and climate change.
Water use: Coal power plants use large amounts of water for cooling and steam generation. This puts pressure on local water resources, especially in areas where water scarcity is a problem.
Impact of coal mining: Coal extraction, whether through surface or underground mining, has serious environmental consequences, including habitat destruction, soil erosion, and groundwater contamination.
Waste disposal: Coal combustion produces ash and sludge, which must be carefully managed to avoid environmental pollution. Improper disposal of ash can result in the release of toxic substances into the environment.
2-Thermal power stations that use gas
What is a gas fired thermal power station?
A gas fired thermal power station is a type of power plant in which natural gas is burned to produce heat and this heat is used to produce steam or to directly drive a gas turbine, both of which can be used to generate electricity. In these plants, the combustion of natural gas releases heat, which either powers a gas turbine directly (in simple cycle plants) or produces steam for a steam turbine (in combined cycle plants).
Natural gas, which consists primarily of methane (CH4), is often considered a cleaner alternative to coal because of its low carbon content and fewer harmful emissions during combustion.
How Power Generation Process in Gas Fired Thermal Power Stations?
The power generation process in a gas fired thermal power station can be divided into two basic systems: simple cycle and combined cycle. How the process works:
Simple cycle gas power plants:
In a simple cycle gas-fired power plant, the process is relatively straightforward. It involves the following steps:
Combustion of natural gas: Natural gas is burned in a combustion chamber or gas turbine. The combustion process produces hot gases at very high temperatures (approximately 1,000°C to 1,500°C), which are fed into a gas turbine.
Powering the gas turbine: High pressure, hot gases pass through a gas turbine, causing it to spin. This mechanical energy from the spinning turbine is then converted into electrical energy by an attached generator.
Power generation: The generator produces electricity, which is then transmitted to the power grid for distribution.
Exhaust gases: After passing through the turbine, the exhaust gases are released into the atmosphere. These gases can include nitrogen oxides (NOx) and carbon dioxide (CO2), although emissions are generally lower than those from coal-fired plants.
Combined cycle gas power plants
A combined cycle gas fired power plant is a more efficient version that uses both a gas turbine and a steam turbine to generate electricity. It involves the following steps:
Gas turbine operation: The process begins like a simple cycle plant, in which natural gas is burned in a combustion chamber, producing hot gases. These gases drive a gas turbine, which is connected to a generator to produce electricity.
Waste heat recovery: Unlike simple cycle plants, the gases (still at high temperatures) emitted from the gas turbine are not wasted. Instead, they are passed through a heat recovery steam generator (HRSG), where the heat from the exhaust gases is used to convert water into steam.
Steam turbine operation: The steam produced by the HRSG is directed to a steam turbine, which rotates and drives another generator to produce additional electricity.
Combined Output: Combined cycle systems significantly increase efficiency by utilizing mechanical energy from both a gas turbine and a steam turbine. This can result in an overall efficiency of 50% to 60%, compared to the 30% to 40% efficiency typically found in simple cycle plants.
Exhaust Gases: After passing through the steam turbine, the gases are released into the atmosphere. Combined cycle plants are more environmentally friendly than simple cycle plants due to their higher efficiency and lower emissions.
Components of a Gas Fired Thermal Power Station?
A gas fired thermal power station consists of several key components that work together to convert natural gas into electricity. These include
Gas turbine: The core of both simple cycle and combined cycle plants where the combustion of natural gas produces high temperature gases that drive a turbine to produce mechanical energy.
Generator: A machine that converts mechanical energy from a turbine into electrical energy through electromagnetic induction.
Heat Recovery Steam Generator (HRSG): In combined cycle plants, the HRSG captures waste heat from the exhaust of a gas turbine and uses it to produce steam, which drives a steam turbine.
Steam Turbine: In combined cycle plants, this turbine is powered by steam generated from waste heat. This produces additional electricity and increases the efficiency of the plant.
Combustion Chamber: Where natural gas is burned to produce the high temperature gases needed to turn the turbine.
Cooling System: Typically water based cooling systems or air cooled condensers are used to cool the steam discharged from the steam turbine. Cooling towers or heat exchangers are used in this process.
Control Systems: Advanced control systems are used to monitor and regulate the performance of turbines, generators, and other components, ensuring that the plant operates efficiently and safely.
Advantages of Gas Fired Thermal Power Plants
Higher Efficiency: Gas fired plants, especially combined cycle ones, are more efficient than coal-fired plants. Their ability to capture and utilize waste heat increases overall efficiency, often by more than 50% compared to coal fired plants, which typically operate at around 35%.
Lower Emissions: Burning natural gas produces significantly less pollution than coal. CO2 emissions from natural gas combustion are about 50-60% lower than coal, making gas fired plants a cleaner option in the context of generating energy from fossil fuels.
Flexibility: Gas fired plants can be quickly ramped up or down to meet demand, making them an excellent choice for balancing intermittent renewable energy sources such as wind and solar. Their flexibility also allows them to provide backup power during periods of high demand.
Low capital costs: Compared to coal fired plants, gas fired plants typically require less capital investment, making them more attractive to investors and utilities. Gas turbines are typically smaller and less complex than the steam boilers used in coal fired plants.
Quick start up time: Gas power plants especially simple cycle plants, can start generating electricity relatively quickly compared to other methods of generating electricity. This makes them ideal for regions where quick load capacity is needed.
3-Thermal power stations that use oil
Thermal power stations that burn oil to generate electricity are an integral part of the global energy landscape. While coal and natural gas dominate most power generation systems, oil fired thermal power plants continue to play a significant role, especially in regions with limited access to natural gas or coal resources. These plants operate by burning oil to generate heat, which drives turbines and ultimately generates electricity. Despite the growing trend toward cleaner energy sources, oil-fired power plants remain essential in some parts of the world due to their reliability and flexibility.
What is an oil-fired thermal power station?
An oil-fired thermal power station is a power plant that burns oil (either heavy fuel oil or light diesel oil) to generate heat. The heat generated by the combustion of oil is used to convert water into steam, which drives a steam turbine connected to an electric generator. Oil is used as a fuel in thermal power plants when other sources such as coal or natural gas are not available, or as a backup fuel for power stations that primarily use coal or gas.
Oil-fired power stations are typically found in remote areas or islands where transportation of natural gas or coal is difficult. They can also serve as peaking plants or backup systems to handle peak electricity demand or provide power in emergency situations.
Power Generation Process in Oil-Fired Thermal Power Stations
The power generation process in an oil-fired thermal power station closely follows the standard principles used in most thermal plants, where heat energy is converted into electrical energy. How the process works:
Oil combustion: The process begins with the combustion of oil. Oil, either heavy fuel oil or a lighter type such as diesel, is pumped into a combustion chamber where it is burned. The oil burns at a high temperature, usually around 1,100°C (2,012°F), releasing a significant amount of thermal energy.
Heat transfer to water: The heat generated by the burning oil is transferred to water in a boiler. This heat converts the water into steam under high pressure. The boiler is designed to ensure efficient heat transfer, maximizing the amount of steam produced from the heat generated by the combustion of the oil.
Steam turbine operation: High-pressure steam is directed to a steam turbine. As the steam passes over the blades of the turbine, it causes the turbine to spin rapidly. This rotational motion produces mechanical energy.
Power generation: The rotating turbine is connected to a generator, which converts mechanical energy into electrical energy using electromagnetic induction. The generator produces alternating current (AC) electricity, which is then transmitted to the grid for distribution via power lines.
Cooling and condensation: After passing through the turbine, the steam is cooled and condensed back into water in a condenser. Cooling is usually achieved using water from a nearby river, lake, or cooling towers. The cooled water is then returned to the boiler to be reheated, completing the cycle.
Components of an oil-fired thermal power station
A typical oil-fired thermal power station consists of several key components that work together to convert oil into electricity:
Boiler: The boiler is where the heat from the burning oil is transferred to water. It consists of tubes through which water circulates and absorbs heat, ultimately turning into steam.
Combustion chamber: This is the part of the power plant where the oil is burned. The combustion chamber is designed to ensure efficient burning of the oil, with an adequate supply of air to maintain complete combustion.
Turbine: A turbine is a mechanical device that converts the thermal energy of steam into mechanical energy. The pressure of the steam causes the turbine blades to rotate, creating a rotational motion that drives the generator.
Generator: The generator is connected to the turbine. It converts the mechanical energy released by the turbine into electrical energy through electromagnetic induction.
Condenser: After the steam passes through the turbine, it is cooled in the condenser, converting it back into water. This is an important step in the thermodynamic cycle, as it allows the water to be reused in the boiler.
Cooling system: The condenser requires a cooling system to remove excess heat. This is usually done using cooling towers or a natural water source, such as a river or lake, where the water absorbs heat from the steam.
Fuel storage and handling system: The oil used in the plant must be stored and transported to the combustion chamber. This system includes tanks to store the fuel and pumps to transport the oil to the burner.
Emission control equipment: Like any fossil fuel burning plant, an oil-fired thermal power station requires emission control systems, such as scrubbers and filters, to reduce harmful pollutants such as sulphur dioxide (SO2), nitrogen oxides (NOx), and particulates.
4-Thermal power stations that use biomass
Thermal power stations that use biomass as a fuel source are an important part of the growing shift toward renewable energy. Unlike fossil fuel-based plants that burn coal, oil, or natural gas, biomass power stations generate electricity by burning organic materials. These materials can include wood, agricultural waste, algae, and even municipal solid waste.
Biomass energy is considered a renewable energy source because the fuel is replenished over time through natural processes, and when managed sustainably, it can help reduce greenhouse gas emissions.
In this article, we’ll delve deeper into how biomass-fired thermal power stations work, the components that make them work, the benefits they offer, and the challenges they face as part of a renewable energy landscape.
What is a biomass-fired thermal power station?
A biomass-fired thermal power station is a facility that generates electricity by burning biomass (organic material) to produce heat. The heat generated by burning biomass is used to turn water into steam, which drives a turbine connected to a generator. Biomass can come in many forms, including:
Wood: Sawdust, wood chips, pellets, and other types of wood waste.
Agricultural residues: Such as straw, rice husks, and corn stalks.
Animal manure: Dung from cattle, poultry, and other livestock.
Municipal solid waste: Organic waste from urban environments, including food scraps and yard waste.
Algae and other biofuels: Research is ongoing to explore how algae and other plant-based materials can be used as a source of biomass fuel.
Biomass power stations are classified into two main types: direct combustion plants and co-firing plants. In direct combustion plants, biomass is burned in a boiler to produce steam, while in co-firing, biomass is combined with other fuels such as coal or natural gas in existing power plants.
Power Generation Process in Biomass-Fired Power Stations
The process of generating electricity from biomass in thermal power stations follows a similar approach to other thermal plants, but with biomass as the primary fuel. Here are some of the common steps involved in biomass-based power generation:
Fuel preparation: The biomass is first collected and processed to make it suitable for combustion. This may include drying, shredding, or converting the biomass into pellets or chips for easier handling and more efficient combustion. For example, wood can be processed into pellets, while agricultural waste can be dried and compacted into bales.
Combustion: The produced biomass is burned in a combustion chamber or boiler. When biomass is burned, it produces heat that, depending on the type of material being burned, can reach around 900 °C (1,650 °F). The combustion process releases the energy stored in the biomass as heat.
Heat transfer: The heat generated by burning the biomass is used to boil water in the boiler. As the water turns into steam, pressure builds up.
Steam turbine operation: The high-pressure steam is then sent to a steam turbine. This rotational motion creates mechanical energy.
Electricity generation: The turbine is connected to a generator, and as the turbine rotates, it drives the generator to produce electricity through electromagnetic induction. The electricity is then transmitted to the grid through power lines.
Cooling and condensation: Cooling is usually done using water from a nearby lake, river, or cooling towers. The cooled water is returned to the boiler to be reheated, and the cycle continues.
Components of a biomass-fired power station
The key components of a biomass-fired thermal power station are similar to those of a conventional thermal plant, but with some adjustments to handle the specific properties of the biomass fuel:
Boiler or furnace: The main component where the biomass is burned. It is designed to handle the specific heat output of the biomass and ensure efficient combustion. The boiler includes combustion chambers, heat exchangers, and other components to maximize heat transfer to the water.
Fuel handling system: This system transports the biomass from the storage area to the combustion chamber. It may include conveyors, augers, and feedstock bins to supply the furnace with the correct amount of biomass.
Steam turbine: A steam turbine is used to convert the thermal energy of steam into mechanical energy. The blades of the turbine rotate as steam passes through them, and this mechanical energy drives a generator.
Generator: The generator converts mechanical energy from the turbine into electrical energy. The generator produces alternating current (AC) electricity, which is fed into the electrical grid.
Condenser: After the steam passes through the turbine, it is cooled and condensed back into water in the condenser. The water is then pumped back into the boiler and reheated, continuing the cycle.
Cooling system: A cooling system, which may include water cooling or air cooling, helps reduce the temperature of the steam after it passes through the turbine. This process helps increase efficiency by allowing the condenser to cool the steam back into water.
Emission control systems: Biomass combustion can emit pollutants, such as particulate matter, nitrogen oxides (NOx), and carbon dioxide (CO2). Modern biomass plants are equipped with filtration and scrubber systems to reduce emissions and meet environmental regulations.
Advantages of biomass-fired power stations
Renewable energy source: Biomass is considered a renewable resource because it comes from organic material that is replenished through natural processes. As long as biomass is sustainably sourced, it can be a continuous source of energy, unlike fossil fuels, which are finite.
Carbon neutral: Biomass is often considered carbon neutral because the amount of CO2 released during combustion is approximately equal to the amount absorbed during plant growth. While this does not eliminate all emissions, it does make biomass more environmentally friendly than fossil fuels, especially when managed sustainably.
Waste reduction: Biomass power plants can utilize agricultural, industrial, and municipal waste products, helping to reduce the amount of waste sent to landfills. This makes biomass power an effective way to convert waste to energy.
Benefits of Thermal Power Plant
Thermal power stations, also known as thermal power plants, play a major role in global electricity generation. These plants use heat energy from the combustion of fossil fuels such as coal, oil and natural gas – or generate electricity from renewable sources such as biomass.
Despite the increasing emphasis on renewable energy sources, thermal power stations are integral to the energy mix in many countries. The benefits of thermal power stations are diverse and important for meeting global energy needs.
Reliable and stable electricity generation
One of the primary advantages of thermal power stations is their reliability in generating electricity. Unlike some renewable energy sources such as wind and solar power, which are dependent on weather conditions.
Thermal power stations can operate continuously 24/7, providing a constant and stable supply of electricity. This makes them an essential part of the energy grid, especially during periods when renewable sources are unavailable due to fluctuations in sunlight or wind.
Thermal power plants can also provide “base load” electricity, meaning they can provide a stable, consistent amount of electricity throughout the day and night, ensuring that there are no interruptions in the power supply. In contrast, some renewable energy systems may require backup support or storage technologies to ensure grid stability.
Scalability and flexibility
Thermal power stations offer scalability and flexibility when it comes to power generation. They can be designed to accommodate a wide range of power generation levels, from small-scale plants serving local communities to large, industrial plants capable of powering entire regions or countries.
Furthermore, thermal power plants can be used in combination with other energy sources in hybrid systems. For example, natural gas and coal-fired plants can be combined with renewable energy sources to provide a more balanced and reliable energy mix. These plants can also be used as backup systems or “packing” plants to meet periods of high electricity demand, ensuring that the grid remains stable even during peak usage times.
Economic Benefits and Job Creation
Thermal power stations play a significant role in economic growth and development. The construction, operation, and maintenance of these plants create jobs in a variety of sectors. Skilled workers, including engineers, technicians, and operators, are needed to design, build, and operate thermal power stations. Additionally, labor is in demand in the mining, transportation, and fuel supply industries, especially in areas that rely on coal, natural gas, or oil for energy.
Furthermore, thermal power plants can stimulate local economies by providing jobs in surrounding areas. Many power stations are built in rural or underserved areas, where they can serve as an important source of income and development. Local businesses and services also benefit from the economic activity generated by these plants, contributing to the overall prosperity of the region.
Energy Security and Independence
Thermal power stations are important for energy security, especially in countries with significant domestic reserves of coal, natural gas, or oil. By using indigenous sources of fuel, thermal power plants reduce dependence on imported energy and mitigate the risks associated with geopolitical instability and supply disruptions in foreign energy markets. This energy independence can insulate countries from fluctuations in global energy prices and the uncertainty of international fuel markets.
In addition to providing reliable energy, thermal power plants can support national security by ensuring that electricity generation is less vulnerable to external factors. When renewable sources are intermittent, reliable thermal generation backup helps ensure that electricity needs are met without relying entirely on imports.
High efficiency and cost-effectiveness
Thermal power plants, especially those that use natural gas or advanced technologies such as combined cycle gas turbines (CCGT), can achieve high levels of efficiency. A combined cycle system uses both a gas turbine and a steam turbine to generate electricity.
By capturing waste heat from the gas turbine to produce steam for the steam turbine, these plants are much more efficient than traditional systems, allowing them to produce more electricity per unit of fuel used.
In terms of cost-effectiveness, thermal power plants are often seen as cheap and efficient, especially when compared to some renewable energy sources that require upfront investment in infrastructure or ongoing subsidies.
Although the fuel costs of thermal plants (especially coal or natural gas) can fluctuate, the plants themselves can be built and operated at a relatively low cost per unit of electricity generated, especially when using modern technologies that maximize fuel utilization.
Flexible fuel options
Thermal power plants are versatile in terms of the types of fuel they can use. They can be adapted to burn a variety of fossil fuels, including coal, oil, and natural gas. This flexibility allows the most cost-effective and locally available fuel to be used at any given time.
In areas where coal is abundant, for example, coal-fired plants can be more economical. In contrast, natural gas may be preferred in areas where it is more readily available, or cleaner fuels such as biomass can be used to generate electricity in a more environmentally conscious manner.
This flexibility is particularly important in a world where energy resources are subject to fluctuations in price and availability. The ability to switch between fuel sources helps maintain the security and stability of electricity supply.

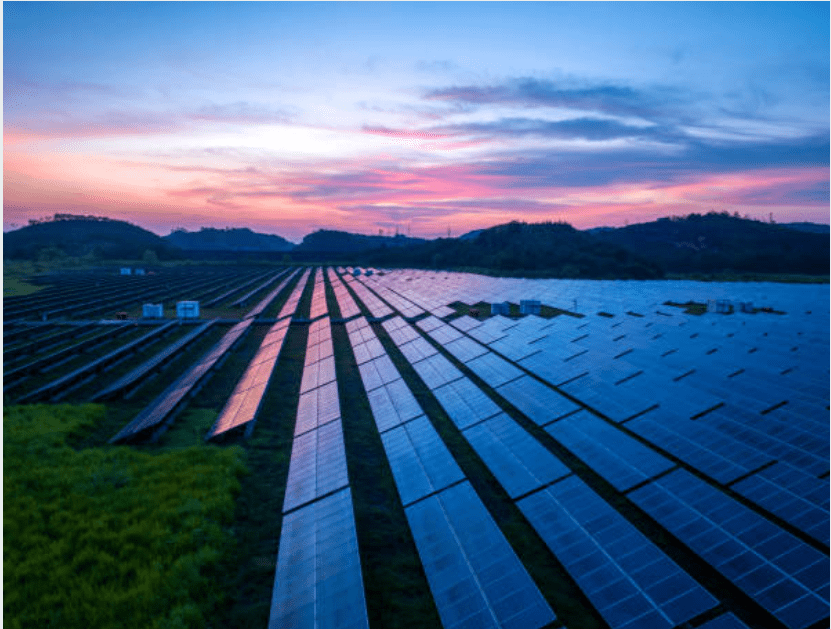

Ability to integrate with renewable energy
While thermal power stations have traditionally been associated with fossil fuels, many plants have been adapted to integrate renewable energy sources, contributing to the broader transition to a clean energy system.
For example, some thermal plants are being converted to co-fire with biomass, allowing them to burn a combination of fossil fuels and renewable materials. Additionally, some countries are exploring the possibility of retrofitting coal-fired plants to allow them to incorporate carbon capture and storage (CCS) technologies, reducing emissions and improving sustainability.
