An crucial electronic device that transforms alternating current (AC) into direct current (DC) is an AC to DC converter, sometimes referred to as a rectifier. Power outlets typically supply AC electricity, but the majority of electronic devices—from smartphones to industrial machinery—run on DC power. From LED lights and battery charging to electric cars and power electronics systems, this conversion is essential in many applications.
How to convert AC to DC in circuit?
An electronic circuit that converts AC voltage which gradually changes polarity into a unidirectional DC voltage is known as an AC to DC converter. In power supply, when electronic equipment need a steady and controlled DC output from the AC mains, it is frequently utilized.
How does the AC to DC converter work?
Three primary steps are usually included in the AC to DC converter:
1-Rectification: Uses diodes to transform AC into pulsing DC.
2-Filtering: Uses inductors or capacitors to even out the pulsing DC.
3-Regulation(optional): maintains a steady DC voltage despite changes in the load or input.
Let’s study these:
1. Rectification
This is the main stage where diodes are used to transform AC into pulsing DC. Different kinds of rectifier circuits exist, including:
A half-wave rectifier only permits one half of the AC cycle and uses a single diode.
A full-wave rectifier makes use of both sides by using two diodes and a center-tapped transformer.
Bridge Rectifier: Provides increased efficiency without requiring a center-tapped transformer by utilizing four diodes in a bridge design.
2. Filtering
The rectified output is filtered by an inductor or capacitor, which lowers the ripple voltage and produces a smoother DC output.
3. Control of Voltage
To maintain a steady output voltage in the face of variations in load or input voltage, voltage regulators such as Zener diodes, linear regulators (such as the 7805), or switching regulators are used.
ac to dc converter circuit diagram is below:
What is converter and its types?
Based on technology and applications, AC to DC converters can be broadly divided into:
1. A power supply that is linear
Converting mains alternating current (AC) into usable direct current (DC) is a basic necessity in the field of electronics. A linear power supply is used to accomplish one of the earliest and most basic types of this conversion. Linear power supplies are still useful because of their dependability, simplicity, and low noise level, even though switched-mode power supplies (SMPS) have essentially replaced them in many applications.
A linear power supply is an AC to DC converter that generates a steady DC output voltage by use of a transformer, rectifier, filter, and linear voltage regulator. The term “linear” refers to the way the pass element—usually a transistor or diode operating in the active region—continuously and linearly controls voltage.
Components
1. Transformer
Function: Adjusts the incoming AC voltage to the appropriate level by stepping it up or down.
Type: Usually a transformer with a laminated core.
As an illustration, 230V AC is stepped down to 12V AC.
2. Rectifier
Function: Produces pulsing DC from AC.
Types:
Rectifier with Half Wave
Full-wave rectifier (bridge or center-tap type)
Bridge rectifiers are preferred because they use the transformer winding more effectively.
3. The filter
Function: Evens out the rectifier’s pulsing DC.
Capacitors (and occasionally inductors) are the components.
Capacitor-input filter (C filter) is a common filter.
4. Regulator of Voltage
Function: Preserves a constant DC output voltage in the face of changes in load current or input voltage.
Types:
Zener Diode Regulator (low power, basic design)
Feedback in a Series Pass Transistor
Integrated Linear Regulators (such as LM317 and 78xx)
Operation: To maintain a steady output, surplus voltage is dissipated as heat.
The linear power supply follows this simple process to convert AC to DC:
AC Step-Down: To achieve the desired level, the transformer reduces the input voltage.
Rectification: The rectifier transforms AC into unidirectional pulsing DC by permitting only one polarity of power.
Filtering: To produce a smoother DC signal, ripples are removed by capacitors (and occasionally inductors).
Regulation: By adjusting for changes in input and load, the voltage regulator smoothes out the DC signal and maintains a steady output voltage.

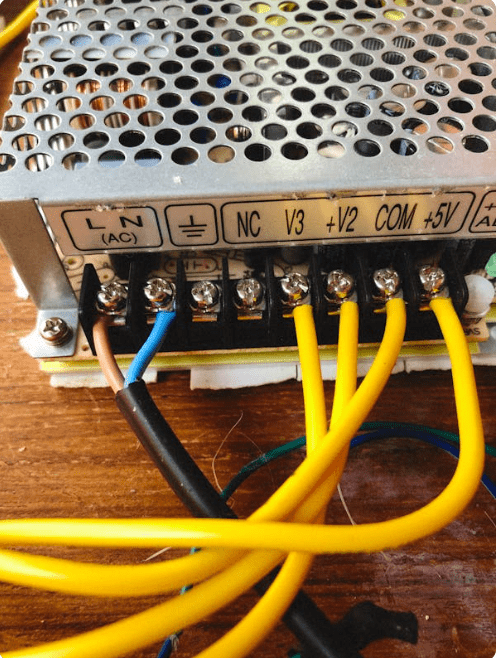

2. Power Supply with Switch Mode (SMPS)
A Switch Mode Power Supply (SMPS), a type of AC to DC converter that uses high-frequency switching to adjust output voltage, satisfies the needs of modern electronic devices by providing high efficiency, compact size, and dependable performance. An SMPS is an electronic power supply that uses high-frequency switching techniques to transform alternating current (AC) into direct current (DC). SMPS efficiently regulates and delivers power using switching devices and energy storage components (inductors or capacitors), in contrast to conventional linear power supply that employ resistive losses to control voltage.
Working Principle of SMPS
1. Filtering and Rectification of AC Input
First, a rectifier (commonly a bridge rectifier) transforms the AC mains voltage (usually 110V or 230V) into unregulated DC.
The rectified output is smoothed with a filter capacitor, which lowers ripple.
2. Switching at High Frequencies
A high-frequency oscillator circuit, which usually uses a transistor like a MOSFET or IGBT, receives the DC voltage and rapidly turns on and off (usually between 20 kHz and 1 MHz).
A pulsed waveform produced by this high-speed switching is subsequently sent through an inductor or transformer.
3. Isolation and Transformer
A transformer receives the high-frequency AC and, depending on the use, steps the voltage up or down.
For user safety, galvanic isolation between the input and output is provided by the transformer.
4. Secondary Side Filtering and Rectification
To create DC, the transformer’s output is rectified once more using Schottky or quick recovery diodes.
Capacitors and inductors, which act as output filters, eliminate switching noise and produce a steady DC output.
5. Regulation and Feedback
Regardless of changes in the load or input, a feedback loop maintains a steady output by monitoring the output voltage and modifying the switching transistor’s duty cycle.
Usually, pulse width modulation (PWM) is used for this.
Types of SMPS (Based on Topology)
1-Flyback Converter
utilized in applications requiring low to medium power.
allows the transformer to store energy during on-time and release it during off-time.
2-Converting Forward
When the switch is on, energy is transferred straight from the input to the output.
more effective at higher power levels than flyback.
3-Push-Pull Conversion
makes use of two transistors that conduct alternately.
Ideal for applications requiring medium to high power.
4-Converters with Half-Bridge and Full-Bridge
utilized in systems with high power.
Provide improved voltage control and efficiency at the expense of more complexity.
Components of SMPS
AC to DC conversion is done via rectifiers.
Filter Capacitors: Reduce voltage fluctuations.
High-speed switching is managed using switching transistors, such as MOSFETs and IGBTs.
PWM Controller ICs: Use feedback to control output.
Transformers: Offer isolation and voltage scaling.
High-frequency AC is rectified to DC using output diodes.
Clean DC output is ensured by output filters.
3. Rectifiers with Control
How to convert AC to DC using diode?
Controlled rectifiers are an essential kind of AC to DC converters in contemporary power electronics. Controlled rectifiers use thyristors or other semiconductor switches to control the output DC voltage and current, in contrast to uncontrolled rectifiers, which simply use diodes. They are essential in applications like as industrial motor controllers, HVDC systems, and variable-speed drives because of their controllability.
An electrical circuit known as a controlled rectifier uses controllable switches, most frequently thyristors (also known as silicon-controlled rectifiers or SCRs), to change alternating current (AC) into direct current (DC). Controlling the firing angle (α) of the SCRs, which establishes when the device is turned on during the AC cycle, controls the converter’s operation.
This regulation permits:
Controlling the average output voltage
Power flow in both directions in some arrangements
Better flexibility and performance compared to rectifiers based on diodes
Operating Principle
The SCRs’ phase control is the fundamental idea behind a controlled rectifier:
Firing Angle (α) from the AC waveform’s zero crossing at which the SCR is activated is known as the firing angle (α).
Conduction Period: After being activated, the SCR operates until the current (in the case of AC systems) naturally drops to zero, at which time it automatically shuts off.
Delaying the firing angle results in a drop in the average DC output voltage. This provides a method for electronically modulating the output.
Types of Controlled Rectifiers
1-Single-Phase Controlled Rectifiers
(a) Rectifier with Half-Wave Control
uses a load and a single SCR.
One half of the AC waveform is converted.
Easy but ineffective and with low-quality results
(b) Bridge-type or center-tap full-wave controlled rectifiers
Two SCRs and a center-tapped transformer are used in center-tap.
Four SCRs are used in bridge type.
improves output voltage and reduces ripple.
2-Three-Phase Controlled Rectifiers
Higher power management and smoother DC output are features of three-phase systems.
(a) Three SCRs and three diodes are used in a three-phase half-controlled bridge.
Semi-variable output with partial control
(b) Six SCRs are used in a three-phase fully controlled bridge.
Complete output control and motor drive regenerative braking capability
How do you convert from AC to DC?
A rectifier is a device that changes alternating current (AC) into direct current (DC).
Different kinds of rectifiers exist, including:
Only one half-cycle of the AC signal is used by a half-wave rectifier.
Full-wave rectifiers uses both of the AC signal’s half-cycles.
A popular kind of full-wave rectifier that uses four diodes is the bridge rectifier.
Typical applications for rectifiers include:
Electronic power supplies
Chargers for batteries
DC motor drives
Why is converter used?
In order for various kinds of electrical equipment to use electrical energy correctly, it must be converted from one form to another. A converter may alter based on the application:
Using a rectifier to convert AC to DC (for example, to power electronics from the grid).
Using an inverter to convert DC to AC (as in solar power systems or uninterruptible power supplies, for example).
A DC-DC converter is used to convert DC to DC, such as for adjusting the voltage levels in battery-operated equipment.
Using an AC-AC converter to convert AC to AC (for example, in variable frequency drives for motor speed control).
Converters are necessary for:
Regulation of voltage and current
Effective transfer of energy
Connecting renewable energy sources to the grid, such as wind and solar
Power systems for electric vehicles
supplying energy to delicate devices
How many diodes are required to convert AC fully into DC?
Four diodes are required for fully convert AC to DC.
What is inside a converter?
An electronic circuit that transforms electrical energy from one form to another, such as voltage, current, frequency, or type (from AC to DC or vice versa), is commonly referred to as a converter. The contents vary according to the type of converter:
1. DC-DC Converter (which modifies the level of DC voltage)
Within:
Capacitors and inductors: for filtering and storing energy
Switching components for chopping the input, such as MOSFETs or IGBTs
Diodes are used to control the flow of current.
The controller IC controls the switching to produce the intended result.
Buck (step-down), Boost (step-up), and Buck-Boost are common varieties.
2. Rectifier (AC-DC Converter)
Within:
Bridge rectifiers or diodes can be used to change AC into pulsing DC.
To even out the DC output, use capacitors.
Transformer (optional): for isolation and voltage level control
Voltage regulators: for stable output
3. Inverter, or DC-AC Converter
Within:
MOSFETs and IGBTs are high-speed switches that produce an AC waveform.
For waveform control (often sinusoidal PWM), a microcontroller or DSP is used.
Circuits using filters to purify the output waveform
Fans and heat sinks for thermal control
4. AC-AC Convertor
Within:
Transformers: for changes in voltage
SCRs or triacs are used to regulate AC signals.
To smooth the waveform, use filters.
Controller: for controlling frequency or phase angle
How many diodes are required to convert AC fully into DC?
What is converter and rectifier?
In electrical power systems, devices called rectifiers and converters are used to alter the type of electrical current or voltage. Below is a summary of both:
Convert:
Any device that transforms one type of electrical power into another is referred to as a converter. It can alter the type of current (from AC to DC or DC to AC) and step up (raise) or step down (lower) the voltage. Various kinds of converters exist, such as:
converter (rectifier) from AC to DC
converter (inverter) from DC to AC
AC to AC converter (also known as an AC voltage regulator or cycloconverter)
converter (buck, boost, or buck-boost) from DC to DC
Power supply, renewable energy systems, and motor drives are just a few of the many applications for converters.
Rectifier
One particular kind of converter that changes alternating current (AC) into direct current (DC) is a rectifier. Electrical networks provide AC current, whereas electronic devices like computers, batteries, and solar panels typically use DC current. In order to convert bidirectional AC into unidirectional DC, rectifiers usually use diodes to let current to travel only in one direction.
Rectifiers come in two primary varieties:
Half-wave Rectifier: Produces a pulsating DC by using a single diode and permitting only one half (positive or negative) of the AC waveform to go through.
A full-wave rectifier produces a smoother DC output by converting both half of the AC waveform using two or more diodes.
Is a converter AC or DC?
Depending on the kind, a converter can be either AC or DC:
Another name for an AC to DC converter is a rectifier. Direct current (DC) is produced by converting alternating current (AC). Usually, diodes and other components are used to correct the AC signal.
An inverter is a device that converts DC to AC. Direct current (DC) is changed into alternating current (AC) by it. Uninterruptible power supplies (UPS), solar power systems, and a few other applications frequently employ it.
AC to AC Converter: Also referred to as an AC voltage regulator or cycloconverter. It converts one AC voltage level to another (for instance, from a higher frequency to a lower frequency).
DC to DC Converter: These converters alter the DC power’s voltage level; examples are boost converters, which increase the voltage, and buck converters, which decrease it.
Applications
Rectifiers, another name for AC to DC converters, are used in many different disciplines. Here are a few important uses:
Electronic Device Power Source:
Electronic gadgets including computers, TVs, radios, and other home appliances are frequently powered by AC to DC converters. These gadgets need direct current (DC) to function, and the main power source is often alternating current (AC).
DC motor drives:
For DC motors to function well in industrial settings, a steady DC voltage is necessary. These motors get DC power from AC to DC converters, especially in speed control systems where the voltage and current can be adjusted.
Charging a battery:
AC to DC converters are used in many battery charging systems for gadgets such as electric cars (EVs), portable electronics, and renewable energy sources like solar and wind. The batteries need DC to be charged, yet the grid provides AC.
Electronic Power:
Converters from AC to DC are crucial parts of many power electronic circuits. For example, before being processed or stored, AC is first converted to DC in inverters, UPS systems, and high-voltage DC (HVDC) systems.
Systems for Renewable Energy:
In order to store energy in batteries in DC form or to convert the DC produced by solar panels into AC for feeding into the grid, solar power systems usually utilize AC to DC converters, also known as charge controllers or inverters.
Electrification of Railways:
DC motors are employed in many contemporary trains and electric locomotives, and the internal DC system of the train receives power from the overhead electric grid (AC) via AC to DC converters.
Communications:
Data centers, switches, and radio towers are examples of telecommunications equipment that requires DC power to function. To provide a consistent DC supply, these systems frequently make use of AC to DC converters.
Arc welding with electricity:
For the welding machine to supply the required current for arc welding, a DC power source is required. To satisfy the welding process’s criteria, AC must first be converted to DC.
