DC Generator – A Comprehensive Overview

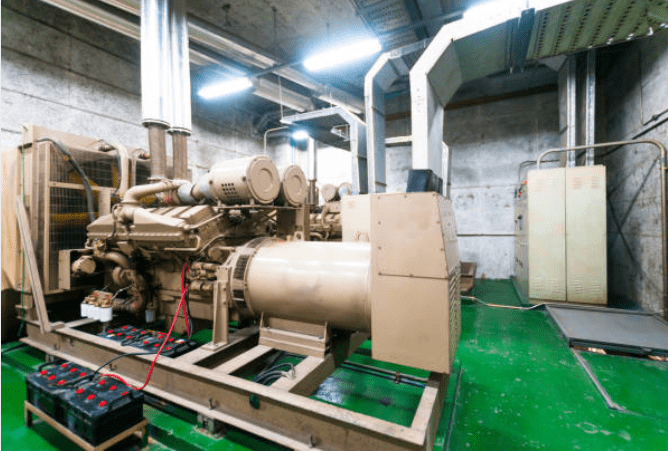

A DC generator is an electrical machine that converts mechanical energy into (DC) energy. It works on the principle of electromagnetic induction, where a conductor moving within a magnetic field produces an electromotive force (EMF). DC generators are widely used in various applications, including power generation, battery charging, and traction systems.
Working principle of DC Generator
A coil or armature rotates in a magnetic field inside a DC generator. The relative motion between the coil and the field produces an alternating EMF in the coil. However, a commutator converts this alternating voltage into a direct voltage, producing direct current.
Construction of a DC generator
The basic parts of a DC generator are as follows:
1-Yoke.
The yoke is the outermost part of a DC generator and acts as a frame that holds other components such as poles and arms in place. It is usually made of cast iron or steel, which provides mechanical stability and a path for magnetic flux.
Functions of the yoke
The yoke performs the following essential functions in a DC generator:
Mechanical support: It provides mechanical strength and rigidity to the entire structure of the generator by holding the magnetic poles in position.
Magnetic circuit: It acts as a return path for the magnetic flux generated in the poles, thus completing the magnetic circuit.
Protection: It surrounds and protects the internal components of the generator from physical damage and environmental factors.
Heat dissipation: The yoke also helps in dissipating the heat generated during the operation of the generator, preventing the components from overheating.
Material used for yokes
The yoke material should have high mechanical strength and good magnetic permeability. Common materials used include:
Cast iron: Used in small DC machines due to its low cost and ease of manufacture. However, it has low permeability and is heavier.
Cast steel: Preferred in large generators as it offers better magnetic properties and mechanical strength than cast iron.
Laminated steel: Sometimes used to reduce eddy current losses in machines operating under varying magnetic fields.
Yoke construction
Yokes are generally constructed in the following ways.
Solid cast construction: Found in small-sized DC generators, where the yoke is cast as a single piece.
Fabricated or welded steel construction: Used in large machines, where steel plates are welded together to form the yoke.
Position of yoke in DC generator
The yoke is placed externally, forming the outer casing of the generator. It holds the magnetic poles firmly in position, and the field coils are mounted on these poles to produce the required magnetic field. The armature and other internal components are placed inside the yoke.
Role of yoke in magnetic flux distribution
The yoke plays an important role in the efficient distribution of magnetic flux. It provides a low-reluctance path for the magnetic field lines and ensures minimal energy loss. The efficiency of the generator depends on the quality of the yoke material and its design.
2-Magnetic Field System
The magnetic field system plays a vital role in the operation of a generator by creating a uniform magnetic field in which the arm rotates. This system typically consists of field magnets, pole cores, pole shoes, and field windings.
Components of the Magnetic Field System
The magnetic field system of a DC generator consists of several essential components, each of which contributes to the creation of a stable and efficient magnetic field. These components include:
Field Magnets
Field magnets are the primary source of the magnetic field in a DC generator. They can be either permanent magnets (used in small generators) or electromagnets (used in large commercial generators). Electromagnets are preferred in industrial applications because of their ability to produce a stronger and more controllable magnetic field.
Pole Cores
Pole cores are cylindrical or rectangular blocks of laminated iron or steel that act as supports for the pole windings and help to focus the magnetic flux. Their primary function is to reduce eddy current losses, which can lead to unwanted heat and energy dissipation.
Pole shoes
Poles are extended projections attached to the pole core, designed to spread the magnetic flux over a wide area of ​​the armature. This design ensures uniform distribution of the magnetic field, improves efficiency, and reduces local saturation effects.
Field windings (exciting coils)
Field windings, also known as exciting coils, are insulated copper conductors wound around the pole core. When current passes through these windings, they create an electromagnetic field that increases the strength of the overall magnetic field. The amount of current in the field windings determines the intensity of the magnetic flux.
Jog.
The yoke is the outer frame of the generator, usually made of cast iron or steel, which acts as a protective structure and provides mechanical support. In addition, it acts as a magnetic path, allowing the flux to complete its circuit between the poles.
Working principle of the magnetic field system
The magnetic field system in a DC generator works on the principle of electromagnetic induction. The working can be summarized as follows:
Excitation: A DC current is supplied to the field windings, which creates a magnetic field around the poles.
Magnetic flux formation: The pole cores and pole shoes help to concentrate and distribute the magnetic field on the surface of the armature.
Interaction with the armature: As the armature rotates within this magnetic field, the conductors within the armature experience a change in flux linkage, which creates an electromotive force (EMF) according to Faraday’s law of electromagnetic induction.
Power generation: The induced EMF drives a current through an external circuit, producing usable electrical energy.
Types of excitation in a magnetic field system
Different methods are used to excite the magnetic field system in a DC generator:
Separately excited generator: An external DC source powers the field winding.
Self-excited generator: The generator itself provides the field current, further classified into:
Series-wound generator: The armature is connected in series with the field winding.
Shunt-wound generator: The armature and field windings are connected in parallel.
Compound-wound generator: A combination of series and shunt windings for better voltage regulation.
3-Armature Core
The armature core is the part of a DC generator where the actual electromagnetic induction occurs. It supports the armature winding and provides efficient flux linkage to ensure proper energy conversion. The armature core is usually made of laminated iron or steel to reduce energy losses due to eddy currents.
Construction of the Armature Core
The armature core consists of several important components and features that contribute to the overall performance of the generator:
Laminated Structure
The core is made of thin iron or silicon steel laminations that are stacked together.
The laminations help reduce eddy current losses, which are caused by currents circulating in the core material.
The laminations are insulated from each other using varnishes or oxide coatings to reduce unwanted conductivity.
Materials Used
High-grade silicon steel is generally used to increase magnetic permeability and reduce hysteresis losses.
The material ensures effective magnetic flux linkage and reduces core heating.
Shape and Structure
The armature core is usually cylindrical and has axial slots to house the armature windings.
The slots are designed to securely house the conductors while allowing effective air circulation for cooling.
The circular core structure helps in uniform rotation and smooth operation.
Shaft Mounting
The armature core is securely mounted on the shaft of the DC generator, which rotates with the prime mover.
The shaft transmits mechanical power from the prime mover (such as a turbine or engine) to the armature core.
Function of the Armature Core
The armature core performs several functions in a DC generator:
Magnetic flux transmission
Acts as a path for the magnetic flux generated by the core field winding.
It ensures effective flux linkage between the rotating armature and the stationary field poles.
Supporting the armature windings
Holds the armature windings in place within the core slot.
It provides a stable structure for conducting current under the influence of the magnetic field.
Loss reduction
Using a layered construction, the armature core reduces eddy current losses.
The use of silicon steel reduces hysteresis losses, improving overall efficiency.
Heat dissipation
The core facilitates the dissipation of heat generated during operation to prevent overheating and improve stability.
Importance of Armature Core in DC Generators
Armature core is important for the efficient functioning of a DC generator for the following reasons.
Increases energy conversion efficiency: By ensuring minimal losses, it helps in achieving high efficiency in energy conversion.
Provides structural integrity: It acts as a strong framework that holds the arms firmly.
Maintains the efficiency of the magnetic circuit: Ensures proper distribution of the primary magnetic field, increasing the efficiency of the generator.
4-Armature Winding
The armature winding consists of conductors wound in a specific pattern on the armature core. It is placed in slots in the armature core, which is usually made of laminated silicon steel to reduce eddy current losses. The ends of the windings are connected to commutator segments, ensuring unidirectional current flow.
Types of armature windings
Armature windings are broadly divided into two types:
Lap winding
Each coil is connected to adjacent segments of the commutator.
Preferred for high current, low voltage applications.
Used in large machines where multiple parallel paths are required.
The number of parallel paths (A) is equal to the number of poles (P) or the number of brushes (B).
Wave winding
The winding grows like a wave around the armature.
Suitable for high voltage, low current applications.
The number of parallel paths is always two.
Used in small or medium generators where high voltage is required.
Practical principle of armature winding
The armature winding works on the principle of Faraday’s law of electromagnetic induction. When the armature rotates in the magnetic field created by the field windings, an EMF (electromotive force) is induced in the conductors due to the cutting of the magnetic flux lines. The direction of the induced EMF follows Fleming’s right-hand rule.
The rotating arm experiences a change in magnetic flux, producing an alternating current (AC).
The commutator rectifies this AC into a one-way DC output.
Materials used in armature windings
The materials used for armature windings play a major role in determining the efficiency and durability of the generator. The most common materials include:
Copper: Preferred due to its high conductivity, mechanical strength, and wear resistance.
Aluminum: Used in some cases where cost reduction is necessary, but has lower conductivity than copper.
Insulating materials: Varnish, mica, and enamel coated wires are used to prevent short circuits between adjacent turns.
Importance of Armature Winding in DC Generators
Converts mechanical energy into electrical energy: The armature winding facilitates the conversion process through electromagnetic induction.
Affects efficiency and performance: The type and material of the winding affect the voltage output and overall efficiency.
Ensures reliable operation: Proper insulation and design prevent short circuits and increase durability.
Affects the commutation process: The smooth transfer of current flow in the commutator depends on the arrangement of the winding.
5-Commutator
The commutator is one of the most important components of a DC generator. It plays a vital role in converting alternating current (AC) in the armature windings into direct current (DC) for external use. This article explores the construction, working principles and importance of the commutator in a DC generator.
Construction of a Commutator
A commutator is a cylindrical structure made of copper segments, insulated from each other using mica or any other insulating material. The segments are connected to the armature windings and rotate along with the armature.
Components of a Commutator:
Copper segments: These are arranged in a cylindrical shape and provide electrical contact.
Mica insulation: Insulates the copper segments from each other.
Brushes: Made of carbon or graphite, they remain stationary and maintain electrical contact with the rotating commutator.
End rings and clamping system: These hold the segments together and ensure their alignment.
Working principle of a commutator
The main function of the commutator is to convert the alternating current in the armature windings into direct current before it reaches the external circuit. This is achieved through the process of mechanical rectification, where the commutator reverses the current direction in each coil at the right time.
Working in stages:
AC induction in the armature: When the armature rotates in a magnetic field, an alternating voltage is induced in its windings.
Connection with the commutator: Each coil is connected to specific parts of the commutator.
Brush contact: Brushes slide on the rotating commutator, collecting current from different parts.
Rectification: As the armature coil moves in the changing magnetic field, the commutator reverses the connection in such a way that the current flowing to the external circuit remains unidirectional.
Importance of Commutator in DC Generator
The commutator plays several important roles in ensuring the efficient operation of a DC generator:
Rectification: Converts AC to DC, making the generator suitable for DC applications.
Ensures constant current flow: The commutator prevents fluctuations in output, providing a stable DC supply.
Facilitates efficient energy transfer: By maintaining proper electrical contact through the brushes, the commutator ensures minimal power loss.
Protects armature windings: Proper switching of current reduces wear and tear on the armature windings.
Common Problems and Maintenance
Like any mechanical component, the commutator is also subject to wear and tear. Some common problems include:
Brushing: Due to misalignment or excessive dirt on the brushes.
Uneven wear of parts: Due to continuous rotation and electrical contact, leading to poor performance.
Carbon deposits: The accumulation of carbon particles on the brushes can inhibit conductivity.
Maintenance guide:
Regular cleaning: Keep the commutator surface free of dust and carbon deposits.
Proper brush alignment: Ensure that the brushes are positioned correctly to prevent them from flashing.
Periodic inspection: Check for wear and replace damaged parts as needed.
Bearing lubrication: Ensures smooth rotation and reduces friction losses.
6-Brushes
The brushes of a DC generator are an essential component in ensuring effective electrical contact between the rotating and stationary parts of the machine. They play a vital role in transferring current from the rotating commutator to the external circuit while maintaining minimal electrical resistance and wear.
Function of Brushes in a DC Generator
The primary function of brushes in a DC generator is to facilitate the conduction of electrical current between the commutator and the external load. Since the armature rotates while the external circuit remains stationary, the brushes provide a sliding contact that allows for the continuous transfer of power.
Brush Construction and Materials
Brushes are generally made with good electrical conductivity and self-lubricating properties to reduce friction and wear. Common materials used for brushes include:
Carbon brushes: These are the most widely used due to their durability and self-lubricating nature.
Graphite brushes: Provide excellent conductivity and wear resistance.
Metal-graphite brushes: A mixture of graphite and a metallic material (such as copper) to increase conductivity and reduce sparking.
Electrographite brushes: High-performance brushes used in heavy-duty applications.
Working mechanism
The brushes are placed in direct contact with the commutator segments.
As the commutator rotates, the brushes slide over the various segments, maintaining electrical continuity.
The brushes ensure smooth transfer of current while adapting to minor surface irregularities on the commutator.
To maintain efficiency, the brushes are held under controlled pressure using brush holders and springs.
Factors Affecting Brush Performance
Several factors affect the performance and lifespan of brushes in a DC generator:
Brush pressure: Maximum pressure is required to ensure a stable connection while minimizing wear.
Material Composition: The right choice of material affects conductivity and durability.
Brush Alignment: Proper positioning ensures low sparking and efficient current transfer.
Commutator Surface Condition: A smooth and well-maintained commutator surface reduces brush wear and increases efficiency.
Operating Conditions: Factors such as humidity, temperature, and contamination can affect brush life and performance.
Maintenance and Troubleshooting
Regular brush maintenance is essential for optimal performance of a DC generator. Some of the important maintenance practices include:
Inspection and Replacement: Periodically check for wear and timely replacement of brushes to prevent power loss.
Commutator Cleaning: Keeping the commutator clean to reduce sparking and overheating.
Adjusting Brush Pressure: Ensuring proper contact pressure to reduce wear and power loss.
Checking for spark: Excessive sparking may indicate improper alignment, incorrect pressure, or contamination.
Types of DC Generators
1-Separately excited DC generator
A separately excited DC generator is a type of direct current (DC) generator in which the field winding is energized by an external independent DC source. Unlike self-excited DC generators, where the field winding is energized by the generator output, separately excited DC generators have a specific source for excitation. This arrangement provides greater control over the generator’s output voltage and current characteristics.
Construction
The basic construction of a separately excited DC generator is similar to other DC generators. It consists of the following major components:
Armature: The rotating part that generates electrical energy.
Field winding: The stationary coil that creates the magnetic field, externally powered.
Commutator: A mechanical rectifier that converts the AC generated in the armature to DC.
Brushes: Carbon or graphite contacts that maintain electrical contact with the rotating commutator.
External excitation source: A separate DC power supply used to drive the field winding.
Working principle
The working principle of a separately excited DC generator is based on Faraday’s law of electromagnetic induction, which states that an electromotive force (EMF) is induced in a conductor passing through a magnetic field.
The external DC source energizes the field winding, creating a strong magnetic field in the generator.
When the armature rotates within this magnetic field (due to mechanical input such as a turbine or motor), it cuts through the magnetic lines of force.
This motion induces an EMF in the armature windings.
The commutator converts the alternating EMF generated in the armature into direct current, which is then collected by brushes and supplied to the load.
Separately Excited DC Generator Characteristics
Magnetic (Open Circuit) Characteristics
Shows the relationship between the generated EMF and the field current when the generator is running at a constant speed.
The curve initially increases rapidly and then saturates due to the magnetic saturation of the core.
External Characteristics
Shows the relationship between the terminal voltage and the load current.
The voltage drops slightly as the load current increases due to the effects of armature resistance and armature reactance.
Internal Characteristics
Shows the relationship between the generated EMF and the armature current.
This curve is above the external characteristic curve due to the voltage drop in the armature resistance.
Advantages
Accurate voltage control: External excitation allows for better regulation of the output voltage.
No field saturation issues: Since the field excitation is independent, the voltage regulation remains stable.
Useful for variable loads: Ideal for applications where load conditions vary significantly.
Improved efficiency: Due to low armature reaction and separate excitation control.
Disadvantages
Requires an external DC source: This increases the cost and complexity of the system.
More maintenance: More components mean additional maintenance requirements.
Power loss in the field circuit: The external field winding requires constant power, which results in energy loss.
Applications
Separately excited DC generators are widely used in various industries due to their excellent voltage control and efficiency. Some common applications include:
Electroplating and electrolysis: Stable voltage is required for precise chemical reactions.
Battery charging: Ensures a controlled charging process with minimal fluctuations.
DC motor drives: Used in industrial machinery for adjustable speed applications.
Testing and Laboratory Equipment: Provides accurate voltage control for experimental setups.
Alternator Excitation Systems: Provides stable field excitation for synchronous machines.
2-Self-excited DC generator
A self-excited DC generator is a type of DC generator in which the field winding is energized by current generated by the generator itself. Unlike separately excited DC generators, which require an external source for field excitation, self-excited DC generators use a portion of their output voltage to maintain the magnetic field.
Self-excited DC generators are widely used in a variety of applications, including power generation, automotive alternators, and industrial machinery. These generators are classified into three main types based on how the field winding is connected to the armature:
a)- Series-wound DC generator
b)- Shunt-wound DC generator
c)- Compound-wound DC generator
Series-wound DC generator
Construction and working principle
The armature winding and field winding are connected in series in a series-wound DC generator. This means that the same current flows through both the armature and the field winding.
When the armature rotates, it induces an electromotive force (EMF), which causes current to flow in the series field winding. Since the field winding has relatively few turns of thick wire, it carries the full load current, creating the magnetic field to maintain the generator’s operation.
Features
Voltage-current relationship: The output voltage increases with load but drops significantly at high loads due to the increase in armature resistance.
Current dependence: Since the field excitation depends on the load current, the generator requires a minimum load to maintain self-excitation.
Poor voltage regulation: Voltage regulation is poor because the field current changes with the change in load.
Applications
Series wound generators are rarely used for power generation but are sometimes found in series arc lighting and traction systems.
Shunt Wound DC Generator
Construction and Working Principle
The field winding and armature winding of a shunt wound DC generator are connected in parallel, or shunt. The shunt winding contains many turns of fine wire and draws a small current from the armature output.
As the generator operates, a portion of the generated voltage is applied to the field winding, maintaining a relatively constant magnetic field. Since the field current remains approximately constant, the voltage regulation of the generator is better than that of the series wound type.
Features
Voltage stability: The output voltage remains relatively constant despite varying load conditions.
Improved voltage regulation: Since the field current is independent of the load current, the generator maintains a stable output.
Load dependence: At heavy loads, the terminal voltage drops due to armature reactive and resistive losses.
Applications
Shunt wound generators are widely used in battery charging, electroplating, and other applications where a stable voltage supply is required.
Compound Wound DC Generator
Construction and Working Principle
A compound wound DC generator combines the characteristics of both series and shunt windings. The generator has two field windings:
Shunt field winding: Connected in parallel with the armature, providing stable field excitation.
Series field winding: Connected in series with the armature, increasing voltage stability under varying loads.
Based on the nature of compounding, compound wound generators are classified as:
Collectively compound generator: The series and shunt fields support each other, providing better voltage regulation.
Differentially compound generator: The series and shunt fields oppose each other, which can cause voltage instability and is rarely used.
Features
Improved voltage regulation: The cumulative compounding helps maintain the output voltage under varying loads.
Load handling capability: Suitable for applications that require varying load operations.
Balanced performance: Offers a balance between shunt and series characteristics.
Frequently Asked Questions
1. What is a DC generator?
A device that transforms mechanical energy into direct current (DC) electrical energy is known as a DC generator. It operates on the principle of electromagnetic induction, which involves the rotation of a coil or armature within a magnetic field to produce electrical current.
2. How does a DC generator work?
A DC generator operates by spinning an armature (a coil of wire) within a magnetic field. The coil generates a current as the armature slices through the magnetic field lines. The brushes and commutator gather the current, changing the alternating current (AC) generated in the armature into direct current (DC).
3. What are the main parts of a DC generator?
The main parts of a DC generator include:
Armature: The rotating coil of wire where the current is induced.
Magnetic Field: Typically created by field coils or permanent magnets.
Commutator: A mechanical rectifier that converts AC to DC.
Brushes: Carbon brushes that maintain contact with the commutator to transfer the current.
Shaft: Rotates the armature.
Field Coils: Provide the magnetic field for the generator.
4. What is the function of the commutator in a DC generator?
The commutator serves to change the direction of current flow in the armature windings. It guarantees that the current flowing from the armature is consistently unidirectional (DC) rather than alternating.
5. What is the difference between a DC generator and an AC generator?
A DC generator generates direct current (DC), characterized by electron flow in a single direction. In contrast, an AC generator produces alternating current (AC), in which the current direction reverses periodically.
6. What are the types of DC generators?
There are three main types of DC generators:
Separately Excited DC Generator: The field coils are energized by an external source.
Self-Excited DC Generator: The field coils are energized by the generator’s own output. It is further divided into:
Series-wound: The field winding is connected in series with the armature.
Shunt-wound: The field winding is connected in parallel with the armature.
Compound-wound: Combines both series and shunt windings.
7. What is the difference between series, shunt, and compound DC generators?
Series-wound: The field winding and the armature are connected in series. It delivers high voltage at low speeds, but can become unstable when the load varies.
Shunt-wound: The armature and the field winding are connected in parallel. It delivers a stable output voltage, no matter how the load varies.
Compound-wound: This type of winding combines both series and shunt windings to achieve a high current output while maintaining stable voltage.
8. What is the role of brushes in a DC generator?
Made of carbon, brushes are used to keep an electrical connection with the rotating commutator. The electrical current is transferred from the commutator to the external circuit by them.
9. What is the purpose of the armature in a DC generator?
The armature is the component of the generator that transforms mechanical energy into electrical energy. It is made up of wire coils that spin within a magnetic field, generating a current through electromagnetic induction.
10. Why does the DC generator require a magnetic field?
It is the magnetic field that makes it possible for a current to be generated in the armature. The armature, when rotated in this field, intersects the magnetic flux. This leads to the creation of an electromotive force (EMF) and, as a result, current.
