A DC series motor is a particular kind of DC motor where the armature winding and field winding are connected in series. This indicates that both windings are receiving the same amount of current. A DC series motor is perfect for applications that need strong torque at low speeds since its torque is exactly proportional to the square of the armature current. A DC Series Motor is a kind of DC motor in which the armature winding and field winding are connected in series. The DC series motor is commonly used in traction systems, electric vehicles, cranes, and hoists because of its unique features, particularly its strong beginning torque. The construction, operation, features, benefits, disadvantages, and uses of DC series motors will all be covered in this extensive reference.
Working Principle of DC Series Motor
Fleming’s Left-Hand Rule, which asserts that a current-carrying conductor experiences a mechanical force when put in a magnetic field, is the basis for the DC series motor’s operation.
When a DC voltage is used:
After passing through the series field winding, the current reaches the armature. As a result, the stator generates a magnetic field, and the armature conductors experience electromagnetic fields. The torque produced by the interaction of the armature current and the magnetic field rotates the armature.
Construction of DC Series Motor
A DC series motor’s main components are as follows:
1. Stator

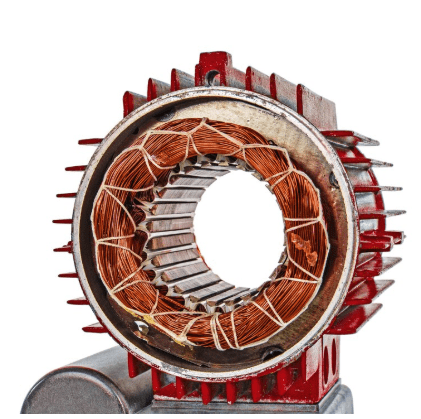

The field windings wound on the pole cores are contained in the stator (field winding). It carries the entire armature current because it is connected in series with the armature.
A DC series motor’s stator is essential to its dependability, efficiency, and performance. Anyone dealing with electric motors, particularly in applications like electric traction, cranes, and heavy machinery, has to understand the stator’s construction and operation. The stationary component of a DC series motor that contains the field windings that produce a magnetic field is called the stator. The stator, which makes up the motor’s outer body, is stationary in contrast to the rotating rotor (also called the armature). The torque produced by the interaction of the current-carrying armature and the stator’s magnetic field powers the motor shaft.
Current passes via the armature winding after passing through the series field winding when the motor is subjected to voltage. Because the field winding is connected in series, the magnetic field it generates is proportional to the current.
According to the Lorentz force law, this magnetic field creates a force that rotates the armature by interaction with the current flowing in the armature conductors. Back EMF forms as the motor accelerates, opposing the applied voltage and limiting the current.
The following factors make the stator crucial:
Magnetic Field Generation: The armature is unable to generate torque in the absence of the stator’s field windings.
Torque Control: The motor’s torque is directly impacted by the stator’s magnetic field intensity. This makes DC series motors perfect for applications requiring high starting torque.
Structural Integrity: The motor’s alignment and mechanical stability are preserved by the yoke and poles.
To ensure the stator’s longevity and peak performance:
Check for broken windings and loose connections on a regular basis.To avoid short circuits, check the resistance of the insulation.
Dust and other impurities that could lower magnetic efficiency should be removed.
2. Armature
The revolving component of a DC series motor that transforms electromagnetic energy into mechanical energy is called the armature. It is made up of windings and a shaft-mounted laminated core. Torque is created when the armature interacts with the magnetic field created by the field windings, which are connected in series with the armature.
Working Principle of Armature in DC Series Motor
When applying a voltage to the DC series motor:
The armature winding receives current after passing through the field winding.
This creates a powerful magnetic field.
The interaction of the armature conductors’ current with the magnetic field produces a force known as the Lorentz Force.
According to Fleming’s Left-Hand Rule, the armature rotates as a result of this force.
Every half cycle, the commutator flips the windings’ current direction, guaranteeing constant torque in a single direction.
Importance of the Armature in DC Series Motor
1. Generation of Torque
A DC series motor’s torque corresponds directly with the armature current squared. Because of this, the armature is an essential component for generating high starting torque.
2. Effectiveness and Performance
Reduced losses, improved commutation, and increased motor efficiency are guaranteed by a well-designed armature.
3. Output from Mechanical
The armature’s spin is the primary source of the motor’s mechanical power production, making it essential to its use.
3. Commutator
In DC motors, the commutator is a revolving electrical switch that switches the direction of current flowing from the rotor to the external circuit. It guarantees that current flows to the armature windings in a way that keeps the motor’s torque unidirectional.
To put it simply, the commutator in a DC series motor maintains the motor’s smooth operation by regulating current flow while the motor rotates, serving as a bridge between the rotating armature and the stationary external circuit.
The armature winding and field winding of the DC series motor are connected in series. In order to maintain the torque generated in the same direction, the commutator makes sure that the armature conductors’ current direction is switched every half rotation.
This is how it operates:
Every coil makes touch with a distinct commutator section as the armature rotates.
The brushes stay fixed, but the commutator segments revolve with the shaft.
Every half turn, the commutator’s position causes the armature windings’ current to flow in the opposite direction.
The motor may continue to spin effectively because of this reversal, which guarantees constant rotational torque in a single direction.
The following essential components make the structure of the commutator:
1. Commutator elements
constructed from hard-drawn copper.
Mica sheets are used to insulate the segments from one another.
placed on the armature shaft and arranged in a cylindrical configuration.
2. Brushes
typically composed of graphite or carbon.
positioned to come into touch with the segments of the commutator.
Convey current to and from the armature in rotation.
3. Insulation
To avoid short-circuiting, mica is positioned in between commutator segments.
High-quality insulation is necessary to prevent electrical malfunctions.
For a DC series motor to operate at its best, the commutator is essential
This is why it’s so crucial:
1. One-way torque
The torque would alternate direction and continuous rotation would be impossible without the commutator because the current in the armature windings would not reverse.
2. Effective Switching of Current
It reduces mechanical and electrical losses by facilitating seamless current switching between coils.
3. Dependability of Motors
The life and dependability of the motor are increased by proper commutation, which lowers heat production, sparking, and brush wear.
4. Easy Functioning
In applications like electric traction and cranes that need a strong starting torque, the commutator aids in maintaining a steady torque output.
4.Brushes
In a DC series motor, brushes are electromechanical devices that transfer current between the motor’s spinning and stationary components. Because of their continuous interaction with the commutator, electrical energy can enter the rotating armature winding. Without brushes, the motor circuit’s energy flow would be insufficient, making the motor non-operational. DC series motors’ simplicity and strong starting torque make them popular in both industrial and automotive settings. The brush is one essential part of how they work.
In a DC series motor, brushes serve the following primary purposes:
Conducting Current: They move current to the revolving commutator from the external circuit.
Maintaining Contact: Brushes make sure that the rotating portion and the electrical connection is constant.
Helping with Commutation: In order to preserve unidirectional torque, they assist in reversing the direction of the current flowing through armature windings.
DC motors use a variety of brush types, depending on the application and motor design:
1. Brushes made of carbon
DC series motors use it the most.
Offer long lifespan, self-lubricating qualities, and high conductivity.
Ideal for applications requiring moderate to high current.
2. Brushes made of graphite
has superior lubrication qualities and less friction.
Perfect for motors with high speeds.
The commutator will be less worn.
3. Graphite-Metal Brushes
A mixture of graphite and metal, usually copper.
Ideal for applications requiring a high current density.
frequently found in powerful DC devices.
4. Electro-Graphite Brushes:
These brushes use heat treatment to improve performance.
Provide superior commutation, minimal friction, and high strength.
utilized in motors with high voltage and speed.
In a DC series motor, the brush material needs to be:
Conducting electricity
resistant to wear
Applying lubricant
Capable of withstanding elevated temperatures
Typical resources consist of:
Carbon
Graphite and copper
The electrographite
The quality and condition of the brushes have a major impact on a DC motor’s life and efficiency. Brushes are necessary for the following main reasons:
Smooth Commutation: Lowers electromagnetic interference and avoids sparking.
Motor longevity: reduces winding and commutator wear.
Stable torque production and current flow are guaranteed by consistent performance.
5. Yoke
A DC series motor’s yoke is essential to the motor’s structural integrity and magnetic performance. Often called the “frame” of the motor, the yoke is a component of the magnetic circuit and offers mechanical support. For electrical engineers, technicians, and students studying electric machines, it is crucial to comprehend the purpose, design, and composition of the yoke. The outer frame of a DC series motor that supports the entire motor assembly and contains the field poles is called the yoke. It accomplishes two main goals
Mechanical Support: It gives the motor’s interior components protection and structural stability.
As a component of the magnetic circuit, the magnetic pathway helps in the effective movement of the magnetic flux generated by the field coils.
The Yoke’s Roles in DC Series Motors
The yoke plays an active role in the motor’s operation and serves as more than just a protective covering. Its primary roles are listed below:
1. Conduction of Magnetic Flux
The magnetic flux produced by the field coils has a low-reluctance route thanks to the yoke. This preserves the motor’s performance and efficiency.
2. Housing and Support
It ensures that the field windings, pole shoes, and pole cores stay in place while the machine is operating.
3. Protection
The yoke shields the internal components—such as the armature, commutator, and brushes—from moisture, dust, and mechanical harm.
Material for the DC Series Motor’s Yoke
High mechanical strength and magnetic permeability are required of the yoke. Materials that are frequently utilized include:
1. Cast iron
Although its magnetic qualities are not as good as those of steel, it has been utilized historically because of its good mechanical strength and ease of casting.
2. Rolled steel or cast steel
Cast or rolled steel, which offers improved efficiency and magnetic performance, is frequently used in modern motors.
Design Factors for Yoke
The following elements are taken into account when developing a DC series motor’s yoke:
Area of cross-section: To reduce magnetic reluctance.
Enough thickness to endure mechanical strains.
Shape: Depending on the motor size and use, it is often rectangular or cylindrical.
Ventilation: To dissipate heat, some designs include fins or holes.
Yoke’s significance for DC Series Motor Efficiency
The motor’s magnetic efficiency is directly impacted by the yoke’s composition and design. A well-designed yoke improves the motor’s overall performance and efficiency by reducing losses from heat and magnetic reluctance.
Characteristics of DC Series Motor
1.High Starting Torque
DC series motors are well known in the electric motor industry for having a strong starting torque, which makes them essential in a variety of industrial and transportation applications. These motors provide strong torque even at rest, which is used in electric trains, cranes, and elevators. However, what is the remarkable feature of the DC series motor?
A DC series motor is a kind of direct current motor where the armature windings (rotor) and field windings (stator) are connected in series. Understanding this setup is essential to comprehending the motor’s performance and behavior, particularly its beginning torque.
The Reasons Behind the High Starting Torque of DC Series Motors
1. Armature and field winding configuration in series
Due to their series connection, the armature current (Ia) and field current (If) in a DC series motor are identical:
Ia=If
This indicates that the current drawn at startup is extremely high (limited only by armature resistance and supply voltage) while the motor is at rest and there is no back EMF (Electromotive Force).
T∝ϕ⋅Ia
2. The square of the armature current determines the torque.
A DC motor’s torque (T) is typically determined by:
Up to saturation, magnetic flux (ϕ) in a series motor is likewise proportional to the armature current:
ϕ∝Ia
So torque becomes:
T∝Ia⋅Ia=Ia2
Important Advantages of DC Series Motors with High Starting Torque
Perfect for applications requiring the motor to start under full load: Ideal for heavy load beginnings.
Fast acceleration: The motor can quickly reach desired speeds because to its high torque.
Strong performance: Particularly advantageous for heavy lifting apparatus and traction systems.
Practical Elements
Although the high starting torque is a significant benefit, DC series motors have certain drawbacks.
Unsuitable for no-load situations: Operating at dangerously high speeds is possible when there is no load.
needs accurate control systems in order to guarantee safe operation and avoid mechanical damage.
2. Speed-Torque Relationship
One kind of direct current (DC) motor that is well-known for its broad speed range and high beginning torque is the DC series motor. This makes it perfect for uses like hoists, cranes, and electric traction systems. Analyzing the relationship between speed and torque is one of the most important parts of comprehending how a DC series motor operates.
The armature winding and field winding of a DC series motor are connected in series. This indicates that the same current passes through the field winding and the armature. The motor’s performance characteristics, particularly its torque and speed behavior under different load circumstances, are greatly influenced by the series connection.
Visual Representation
In a DC series motor’s speed-torque graph:
The curve falls sharply and is not linear.
The speed is extremely high (possibly dangerously high at no-load) with low torque.
The speed decreases dramatically as torque rises.
since of this behavior, a DC series motor should never be operated without a load since it could overspeed and cause mechanical damage.
3. Current-Voltage Relation
Applications needing strong starting torque, like electric trains, cranes, and hoists, frequently use DC series motors. Analyzing a DC series motor’s performance, managing its speed, and guaranteeing its safe operation all depend on an understanding of its current-voltage (I-V) relationship. A DC series motor is a kind of direct current motor in which the armature and field windings are connected in series. The armature and field circuits can both receive the same current thanks to this arrangement.
