What is an Ac motor? working, types, and applications
Electric ac motor play a vital role in almost every industry and household appliance we use today. Of the different types of electric motors, the alternating current (AC) motor is one of the most common and widely used types. AC motors are preferred in many applications due to their simplicity, reliability, and efficiency. This article will take an in-depth look at what AC motors are, how they work, their types, advantages, and applications.

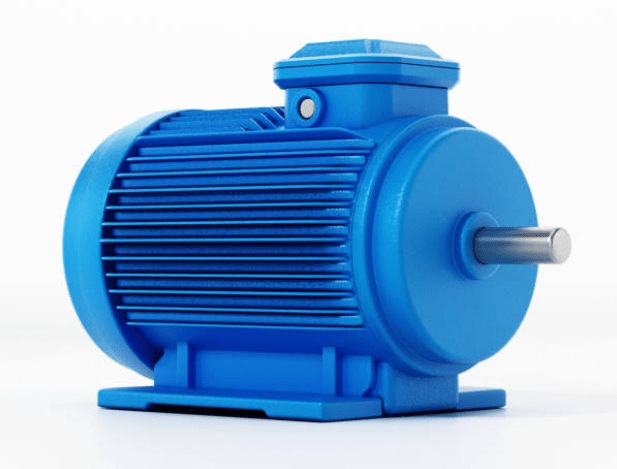

An electric motor that runs on alternating current (AC) power is called an AC motor. Unlike direct current (DC) motors, which use direct current to power the motor, AC motors rely on the flow of AC electricity, which periodically changes its direction. The main components of an AC motor include the stator (the stationary part of the motor) and the rotor (the rotating part).
AC motors are widely used in a variety of applications, from industrial machines and home appliances to large motors in fans, air conditioners, and even electric vehicles.
Ac motor working principle
The operation of an AC motor is based on electromagnetic induction, which was first discovered by Michael Faraday. When alternating current passes through the stator windings, it creates a rotating magnetic field. This rotating magnetic field induces current in the rotor, which causes it to rotate as well. The rotation of the rotor is the mechanical output that powers machinery or drives various devices.
The basic principles behind the operation of an AC motor can be summarized as follows:
1-Alternating current:
Electric motors are primarily powered by alternating current (AC), which is the most widely used form of electrical energy. AC motors are particularly important for a wide range of industrial, commercial, and residential applications because they are efficient, long-lasting, and can run on readily available power sources. This article takes a closer look at the operation of alternating current (AC) in AC motors, the different types of AC motors, and the importance of AC to motor performance.
Understanding Alternating Current (AC)
Before exploring AC motors, it is important to understand what alternating current is. AC is a type of electric current in which the flow of electric charge periodically reverses direction. Unlike direct current (DC), where the flow of electrons is in a constant direction, AC reverses its flow, usually following a sinusoidal wave pattern. The main advantage of AC is that it is easy to generate, transmit over long distances, and convert to different voltages using transformers.
In the United States, the standard AC frequency is 60 hertz (Hz), which indicates that the current reverses direction 60 times per second. In many other regions around the world, a frequency of 50 Hz is used. Due to its oscillating nature, AC is ideal for use in motors, as it creates a rotating magnetic field that is necessary for them to operate.
How AC powers electric motors.
AC motors operate by using an alternating current supplied to them to produce rotational motion. The basic principle behind this is electromagnetic induction, discovered by Michael Faraday in the 19th century. Here’s how an AC motor operates:
Magnetic field interaction: When AC passes through a coil of wire (called the stator) in a motor, it creates a magnetic field. As the current changes direction, the magnetic field also changes its polarity.
Inducing Motion: The rotating magnetic field produced by the alternating current interacts with another part of the motor, usually a rotor. The rotor, located inside the stator, is subjected to the rotating magnetic field produced by the stator. According to the laws of electromagnetism, a force is exerted on the rotor, causing it to rotate. This process continues as long as the AC current is supplied.
Continuous Rotation: The rotor continues to rotate in the same direction due to the continuous reversal of the current, providing the mechanical power required to drive various applications such as pumps, fans, and conveyors.
2-Electromagnetic induction
A key principle of most electrical machines, especially alternating current (AC) motors, is electromagnetic induction. It is the process by which an electric current is induced in a conductor by a fluctuating magnetic field. Rooted in Faraday’s law of induction, this phenomenon is essential to the operation of generators, transformers, and electric motors.
In an AC motor, electromagnetic induction is responsible for converting electrical energy into mechanical energy. AC motors are widely used in industrial, commercial, and domestic applications due to their efficiency, reliability, and ease of use. This article describes the complex relationship between electromagnetic induction and the operation of AC motors, explaining the basic concepts, processes, and its application in modern motor design.
Basics of Electromagnetic Induction
Before we can learn how AC motors work, we must understand the concept of electromagnetic induction. Electric current is induced in a conductor, such as a coil of wire, when it passes through a magnetic field or when the magnetic field around it changes. In 1831, Michael Faraday was the first to discover this phenomenon.
According to Faraday’s law of induction, the electromotive force (EMF) induced in a circuit is proportional to how quickly the magnetic flux through the circuit is changing.
As the name suggests, AC motors are powered by alternating current. The direction of this current is constantly changing, resulting in a fluctuating magnetic field around the motor’s coil. It is the interaction of this alternating magnetic field with the conductors of the coil that produces the mechanical motion used in motor applications.
An AC motor typically consists of two main components: the stator and the rotor. The stator is the stationary part of the motor and contains the windings through which the alternating current flows. The rotor is the rotating part of the motor and is located in the magnetic field of the stator.
Stator and rotor configuration:
The stator produces a rotating magnetic field when alternating current passes through its windings.
The rotor, placed within the rotating magnetic field, experiences the effect of electromagnetic induction, which induces currents in the rotor windings.
Induced current and torque generation:
Faraday’s law states that the current in the rotor is influenced by the changing magnetic field of the stator. This induced rotor current produces its own magnetic field.
This interaction between the magnetic field of the stator and the induced current in the rotor produces a force (torque) that causes the rotor to rotate.
In an AC motor, the direction of the current in the stator windings periodically reverses, which determines the direction of rotation of the rotor.
3-Rotor movement
In alternating current (AC) motors, the rotor is an integral part that is essential for the operation of the machine. Its main purpose is to convert electrical energy into mechanical energy, which powers the motor shaft and produces mechanical output. The motion of the rotor is crucial to the operation of the motor, and understanding the dynamics of this motion is essential to understanding the operation of AC motors. This article will explore the intricacies of rotor motion in AC motors, the different types of rotors, the physics of rotor motion, and how the relationship between the rotor and stator contributes to efficient motor function.
Understanding AC Motors
AC motors work on the principle of electromagnetic induction. They consist of two basic components: the stator (the part that does not move) and the rotor (the part that does move). When alternating current (AC) is supplied to the stator windings, a rotating magnetic field is created. This rotating field induces a current in the rotor, which creates a magnetic force that moves the rotor.
The motion of the rotor is central to the operation of the motor, and its behavior is determined by both the design of the motor and the nature of the applied current.
Types of rotors in AC motors
There are two main types of rotors used in AC motors:
a Squirrel-cage rotor
An induction motor typically employs a squirrel-cage rotor. It consists of an iron core that is laminated, with conductive bars arranged parallel to its length. The end rings at both ends of these bars are shorted to form a closed loop.
Operation: When AC current is applied to the stator, a rotating magnetic field is created, which induces currents in the rotor bars. According to Lenz’s law, these currents produce a magnetic field that interacts with the rotating field from the stator, resulting in a force that rotates the rotor.
Motion: The rotor’s motion lags behind the rotating magnetic field from the stator. This difference in speed, called “slip”, is necessary to induce current in the rotor.
Wound rotor
A wound rotor has coils wrapped around its iron core, similar to the stator windings. External resistors are connected to the rotor windings via slip rings.
Operation: This type involves supplying an external current to the rotor, which can be adjusted to control the speed and torque of the motor. This type of rotor is typically used in applications that require high starting torque or variable speed regulation.
Motion: Like the squirrel cage rotor, the wound rotor also experiences lag compared to the rotating magnetic field of the stator. However, the external connections of the rotor provide more flexibility in controlling the motor’s performance.
Physics behind rotor motion
The rotor motion in AC motors is governed by a fundamental principle of electromagnetism called Faraday’s Law of Induction. According to this law, a changing magnetic flux through a conductor induces an electromotive force (EMF) in the conductor. In an AC motor, the rotating magnetic field produced by the stator induces an EMF in the rotor.
This generated EMF induces a current in the rotor, which interacts with the magnetic field of the stator to produce a force that rotates the rotor. The rotor begins to track the rotating magnetic field, but at a slightly slower speed. Slip refers to the difference between the rotating magnetic field and the rotor speed.
4-Mechanical output
The mechanical output of an AC (alternating current) motor is a key factor in determining the efficiency and effectiveness of the motor in various applications. Whether it is for industrial, commercial, or residential purposes, understanding how mechanical output is generated and how it relates to electrical input can provide insight into how motors perform in real-world settings. This article sheds light on the concept of mechanical output in AC motors, explaining the key factors, formulas, and various components that affect the electrical conversion process.
Introduction to AC Motors
AC motors are machines that convert electrical energy into mechanical energy. Torque and mechanical motion are produced by the interaction of electric current and magnetic fields, which is fundamental to the operation of an AC motor. There are two main types of AC motors:
Synchronous motors: The rotor rotates at the same speed as the rotating magnetic field produced by the stator.
Induction motors (Asynchronous motors): The rotor rotates at a speed lower than the rotating magnetic field, resulting in slip.
In both types, the primary purpose is to convert the electrical power supplied to the motor into mechanical power (torque and rotational speed), which is then used to drive machines, tools, or other equipment.
Understanding Mechanical Output
The mechanical output of an AC motor refers to the useful mechanical energy that the motor delivers to its load, usually in the form of rotational torque and speed. The mechanical power output (P_out) of an AC motor is given by the following relationship:
Pout = T×ω
Factors Affecting Mechanical Output in AC Motors
The mechanical output of an AC motor is not entirely determined by the design or type of motor, but is affected by several factors, including:
a Input power (electrical power)
The electrical power supplied to the motor, often expressed in kilowatts (kW) or horsepower (HP), is a major factor in determining the mechanical output. Electrical power is supplied to the stator of the motor, where it is converted into magnetic energy, and ultimately into mechanical work. The amount of mechanical power output depends on the efficiency of this conversion process.
b Motor efficiency
The efficiency of an AC motor is defined as the mechanical output power divided by the electrical input power. For a perfect motor, this figure would be 100%, indicating that every bit of electrical energy is converted into mechanical energy. However, in the real world, motors incur losses such as:
Core losses (eddy current and hysteresis losses in the rotor and stator)
Copper losses (resistance in the windings)
Friction losses (bearing friction and other mechanical losses)
c Load conditions
The load applied to the motor significantly affects the mechanical output. When an AC motor is running at no load, it produces very little mechanical power, because the torque required to rotate the motor shaft is minimal. Under full load conditions, the motor produces maximum torque, and the mechanical output is at its highest level. However, if the motor is overloaded or operated beyond its rated capacity, the mechanical output may drop, and the motor may overheat or even fail.
d Speed-torque characteristics
The speed-torque relationship is fundamental in determining mechanical output. For most AC motors, torque decreases as speed increases, and vice versa. This relationship can be shown graphically by a speed-torque curve. The optimum operating point on this curve is where the motor delivers maximum mechanical output.
Synchronous motors typically operate at a constant speed, which is determined by the supply frequency and the number of poles in the stator.
Induction motors can vary their speed with changes in load but usually operate with some degree of slip.
Mechanical output power is directly related to torque and rotational speed, so any variation in these parameters will affect the motor’s efficiency and power delivery.
e Voltage and Frequency
The mechanical output of a motor is also affected by the voltage and frequency of the AC supply. Higher voltage generally results in increased torque and power output, but only as long as it is within the motor’s rated capacity. Similarly, changes in frequency affect the speed of rotation of the motor, especially in synchronous motors. In the case of induction motors, variations in frequency cause changes in slip, which affects the mechanical output.
Constant voltage and constant frequency: The motor operates at a steady state, with predictable mechanical output.
Variable voltage and variable frequency: In modern applications, such as variable frequency drives (VFDs), adjusting the voltage and frequency allows for more precise control of the motor’s speed and mechanical output.
Ac motor types
AC motors are generally divided into two main types.
1-Synchronous motors
A synchronous motor runs at a constant speed, called the synchronous speed, which is determined by the frequency of the AC supply and the number of poles in the motor. These motors do not have slip (the difference between the rotor speed and the synchronous speed) when running at full load. This makes them very accurate for applications that require constant speed, such as precision instruments, clocks, or synchronous generators.
Working principle: In a synchronous motor, the rotor is made to rotate at the same speed as the magnetic field produced by the stator. This occurs when the rotor is magnetized (either by permanent magnets or DC excitation) and becomes synchronous with the rotating magnetic field.
Advantages:
Accurate and constant speed.
High efficiency and power factor.
Suitable for large-scale industrial applications.
Disadvantages:
Requires an additional power source (usually DC) to excite the rotor.
Not suitable for variable speed applications.
2-Induction motors (asynchronous motors)
The most widely used AC motors are induction motors. In this type of motor, the rotor has no external power supply and instead relies on electromagnetic induction to produce current and torque. These motors run at a speed slightly below the synchronous speed, and this difference is called slip.
Working principle: When AC current passes through the stator, it creates a rotating magnetic field. This magnetic field induces current in the rotor, causing it to rotate. The rotor always tries to catch up with the stator’s magnetic field, but it never quite matches the synchronous speed, causing it to slip.
Advantages:
Simple construction and design.
Low maintenance required as there is no external electrical connection to the rotor.
Suitable for most general purpose applications.
Can be used with variable frequency drives (VFDs) for speed control.
Disadvantages:
Efficiency may be reduced at low loads.
Speed ​​is not constant and may vary with load.
Ac motor components
1-Stator
The stationary part of the motor, consisting of coils or windings connected to an AC power source. The rotating magnetic field is produced by the stator.

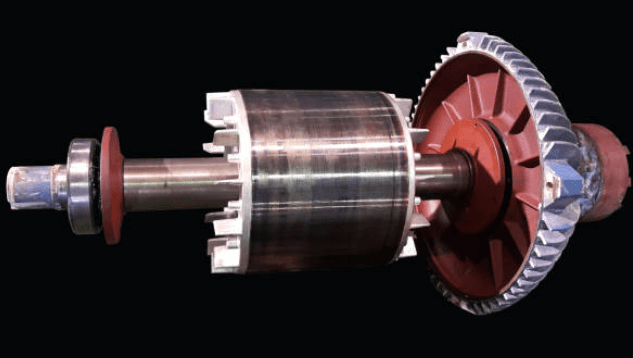

2-Rotor:
The component of the motor that rotates, found inside the stator. The rotor is affected by the rotating magnetic field, causing it to rotate and convert electrical energy into mechanical motion.

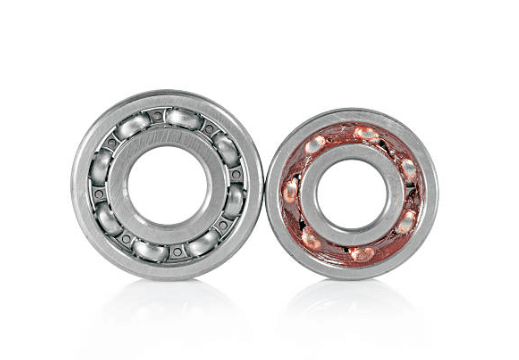

3-Bearings:
Provide support for the rotor and allow it to turn smoothly.
4-Shaft:
Transmits mechanical output from the rotor to the machine or device being driven.

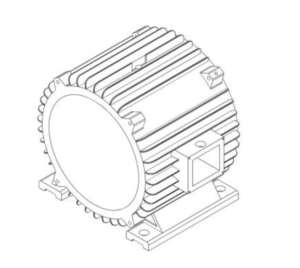

5-Frame:
The outer casing that supports all components and provides structural integrity to the motor.
Ac motor advantages
Simplicity and cost-effectiveness: AC motors are simpler to design and easier to manufacture than DC motors, making them less expensive.
High reliability and durability: With fewer parts subject to wear (for example, no brushes), AC motors have a longer lifespan and require less maintenance.
Wide availability: AC motors are typically available in a variety of sizes, ratings, and configurations, making them suitable for a wide range of applications.
Energy efficiency: AC motors are highly efficient, especially when operating near their rated load, and they can deliver significant amounts of torque relative to their size.
AC Motors applications
AC motors are used in numerous applications across various industries. Some common uses include:
Industrial equipment: AC motors drive heavy machinery such as conveyor belts, pumps, compressors, and fans found in manufacturing facilities.
Home appliances: Refrigerators, washing machines, air conditioners, and vacuum cleaners are examples of appliances that commonly use AC motors.
HVAC systems: Heating, ventilation, and air conditioning systems rely on AC motors to operate fans, compressors, and pumps.
Electric vehicles (EVs): Many electric vehicles use AC motors, particularly induction motors, due to their efficiency and reliability.
Power generation: AC motors are used in power plants for a variety of tasks, including driving generators and turbines.
Frequently Asked Questions
1. What is an AC motor?
An AC motor is a type of electric motor that operates using alternating current (AC) electricity. It comprises a stator (the non-moving component) and a rotor (the moving component) that transforms electrical energy into mechanical energy.
2. How does an AC motor work?
AC motors operate due to the interplay of magnetic fields generated by the stator and the current in the rotor. This interaction produces a force that causes the rotor to turn, resulting in mechanical motion.
What are the types of AC motors?
The two primary categories of AC motors are:
Synchronous motors: The rotor turns at the same rate as the magnetic field of the stator.
Induction motors: The rotor speed is slower than that of the stator’s magnetic field. Predominantly used in industrial applications.
4. What is the difference between a synchronous and an induction motor?
The main distinction lies in the fact that a synchronous motor runs at a constant speed (synchronous speed) that corresponds to the frequency of the AC supply, whereas the rotor speed of an induction motor is always somewhat lower than the synchronous speed.
5. What is slip in an induction motor?
Slip represents the difference between the rotor’s actual speed and the synchronous speed (the speed of the magnetic field in the stator). Expressed as a percentage of synchronous speed, it is required to induce current in the rotor to generate torque.
6. What is the purpose of a capacitor in an AC motor?
In single-phase AC motors, a capacitor is frequently employed to generate a phase shift between the current in the windings. By generating a rotating magnetic field, this enhances the starting torque and the motor’s overall efficiency.
7. Why is an induction motor widely used?
Induction motors are widely used due to their simplicity, durability, low maintenance needs, and cost-effectiveness. They do not need external excitation or brushes, which makes them dependable for various industrial applications.
8. What is the rated power of an AC motor?
The rated power of an AC motor denotes the maximum output power that the motor can provide continuously without overheating or sustaining damage. It is generally quantified in kilowatts (kW) or horsepower (HP).
9. What factors affect the efficiency of an AC motor?
Elements that influence efficiency consist of the design of the motor, the caliber of materials utilized for the motor windings, operating circumstances, load, voltage supply, and any friction losses occurring in the bearings.
10. What is the starting torque of an AC motor?
The starting torque refers to the first force produced by the motor upon its activation. Induction motors typically exhibit low starting torque; however, this can be enhanced through methods such as incorporating capacitors or employing alternative starting techniques like star-delta starting.
