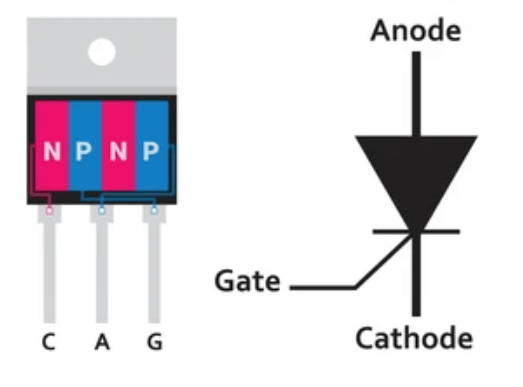

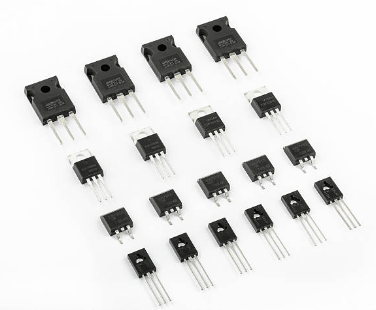

A four-layer semiconductor device called a silicon controlled rectifier (SCR) controls the flow of electrical power by acting as a switch. SCRs are within the category of thyristors, which are semiconductor devices used in alternating current (AC) circuits to regulate power. SCRs are crucial for applications requiring precise control of high-power circuits because, in contrast to conventional diodes, they can be switched on and off using an external signal.
Three junctions are formed by the alternating p-type and n-type materials in four layers that make up an SCR. Applying a brief gate pulse can cause the SCR to go into conduction. Once this happens, it stays in conduction until the current falls below a certain threshold, referred to as the “holding current.”
Silicon-controlled rectifiers (SCRs) are crucial components in power electronics that regulate and manage electrical power. SCRs are extensively utilized in many different applications, including power regulation systems, light dimming, and motor speed control, because of their capacity to withstand high voltage and current levels. The main features, uses, benefits, and operating principles of SCRs are examined in this article, along with the reasons they are regarded as an essential part of contemporary power electronic systems.
How does a silicon controlled rectifier work
The capacity of the SCR to function in both forward and backward directions when appropriately activated is the basis of its working principle. This is a basic explanation of how it works:
Forward Blocking State:
What is the forward blocking state of an SCR?
The SCR stays in a non-conducting state known as the forward blocking condition when the anode is positively biased with respect to the cathode but the gate is not turned on. In this case, the SCR stops current from moving between the anode and cathode even when a forward voltage (positive potential) is applied.
Because it stops electricity from flowing until the SCR is purposefully triggered, this condition is crucial. The SCR functions as an open circuit and stays in the forward blocking condition if it is not activated.
Characteristics of the forward blocking state
Forward voltage application: The SCR remains in the off state even when the anode and cathode are positively biased.
No current flow: Because the device is in the blocked condition, no current passes through it even when a forward voltage is provided.
Gate Not Triggered: The SCR is not brought into conduction by any current flowing to the gate terminal.
High Impedance: In this condition, the SCR acts as a high impedance device, providing a considerable amount of resistance to the current flow.
In this condition, the SCR essentially stays “off,” preventing current from passing through the device even in the presence of voltage.
Importance of the Forward Blocking State in SCR Operation
The forward blocking state is important for several reasons:
Power Control: The SCR can regulate when power is provided to a load by blocking current flow in the forward direction. This is particularly helpful in situations where the SCR may delay power delivery to the load until it is required, such motor speed control or dimming lights.
Protection: The forward blocking capability of the SCR serves as a safety feature in some situations. By staying in an unregulated state when it should shut down, it can avoid overcurrent situations.
first State: An SCR’s forward blocking state is its first state upon powering on or turning off. The SCR will change from this state to the forward conduction state when it is triggered.
How to trigger an SCR from the forward blocking state to the forward conduction state?
A little current is provided to the gate terminal of the SCR to change it from the forward blocking state to the forward conduction state. This current is known as the gate trigger current. The SCR reaches the forward conduction stage when the gate current is high enough to provide a situation that permits it to begin conducting between the anode and cathode.
The SCR is a perfect device for switching applications because of its ability to flip between the forward blocking and forward conduction states. The SCR will remain in the conducting condition until the current passing through it drops below a certain threshold, at which time it will switch back to the forward blocking state.
SCR Triggering:
What is SCR triggering?
SCR triggering is the process of switching an SCR from its off (non-conducting) to its on (conducting) state by sending a little control signal to its gate terminal. This control signal is referred to as the “trigger signal” or “gate trigger.”
The SCR is in a high impedance condition, which means that no current passes through it, when it is turned off. The SCR goes into its active state and starts to conduct when a positive trigger signal is supplied to the gate, which results in current flowing between the anode and cathode.
Key points about SCR triggering:
Gate signal: To activate the SCR, a little voltage or current is provided to the gate terminal.
On state: The SCR will keep conducting after it is triggered until the current falls below the holding current.
Unidirectional Current: Because SCRs only transport current in one way, they are perfect for AC and DC circuits.
SCR Triggering State
The SCR triggering state is the condition in which the SCR transitions from the off state to the on state upon receiving a gate trigger signal. When in the on state, the SCR permits current to flow smoothly from the anode to the cathode and is commonly used to control the flow of power in a load.
Triggering Mechanism
First State (Off State): By default, the SCR is in the off state. When there is no current flowing between the anode and cathode, the device functions as an open switch.
Gate Triggering: Charge carriers are introduced into the SCR junction when a positive voltage pulse is supplied to the gate terminal. Consequently, a chain reaction is initiated when the SCR switches to its on state. This phenomenon is sometimes referred to as forward conduction.
When the SCR is activated, it goes into the on-state, which permits current to go from the anode to the cathode. As long as the current flowing through the SCR is higher than the holding current, the device stays in this mode even after the gate signal is cut off.
Turn-off condition: Until the current passing through the SCR drops below a certain threshold, it will stay on. In order to return to its initial off-state, the SCR will shut off when the current drops below the holding current.
Importance of the SCR Triggering State
An SCR’s ability to function effectively in circuits depends critically on its triggering condition. It controls the power flow and establishes when the SCR will turn on. Here’s why it matters:
Power control: By modifying the timing of the gate trigger signal, the SCR may regulate the amount of power supplied to the load. This is advantageous for AC power control applications, such as light dimmers and motor speed controllers.
Switching efficiency: By minimizing power loss and enhancing efficiency, an SCR’s capacity to stay on after being activated guarantees that the switching process is effective.
Protection: The SCR’s safe operating limits are maintained in part by the triggered state. Overheating or device damage can be avoided with proper triggering.
Types of SCR Triggering
Depending on the use and level of precision needed, SCRs can be activated in a number of ways:
Manual triggering: In this method, a button or switch is used to manually activate the gate. Usually, it is employed for testing in lab environments.
Automatic triggering: Pulse-width modulation (PWM) signals or other control methods are used to automatically activate SCRs in the majority of real-world applications. This makes it possible to regulate the SCR’s switching behavior more precisely and effectively.
Zero-crossing triggering: When an AC signal reaches zero voltage, or the zero-crossing point, SCRs are frequently triggered. This lowers harmonic distortion and improves power conversion efficiency.
Phase-control triggering: In order to regulate the amount of power supplied to the load, the SCR must be activated at a particular phase angle of the AC waveform.
SCR triggering state applications.
Applications for SCRs, which are activated in conduction, are numerous and include:
Phase-controlled rectifiers: SCRs are utilized in circuits that convert AC to DC, where the output voltage and current are determined by the time of the trigger signal.
Dimmable lighting systems: SCRs regulate how much power is sent to the lightbulb, which in turn controls how bright the light is.
Motor speed control: By modifying the timing of the trigger signal, SCRs are used to regulate the speed of DC motors.
Power regulation: Sensitive devices’ power supply voltage and current are controlled using SCRs.
On-state conduction:
What is the on-state conduction state of an SCR?
When an SCR is completely conducting, or when current flows from the anode to the cathode with no resistance, it is said to be in its on-state conduction state. The SCR is in its “on” state in this condition, allowing current to flow through it with little voltage loss.
Because it affects a circuit’s power transmission efficiency, this condition is significant. When the SCR is triggered into conduction and the current passing through it stays over a minimal threshold (referred to as the holding current), the on-state is reached. The SCR stays in the on-state and keeps conducting as long as the current stays over this limit.
Key Features of the On-State Conduction State
Low Voltage Drop: An SCR’s anode-to-cathode voltage drop is usually just 1 to 2 volts while it is in the on state. The SCR efficiently permits electric current to flow with minimal power loss thanks to this low voltage drop.
Current Conduction: Based on the device requirements, the SCR can control a broad range of current levels in the on-state. The SCR stays in this state as long as the current passing through it is higher than the holding current level. The SCR will shut off and go back to its off-state if the current falls below this threshold.
Thermal Stability: The SCR needs to be able to manage the heat produced by the current flowing when it is in the on-state. Effective heat dissipation is necessary to prevent device damage or thermal runaway. For this reason, SCRs frequently use heat sinks or other cooling systems to preserve thermal stability while in use.
Switching Speed: The switching speed becomes less significant while the SCR is in the on state. On the other hand, rapid transitions to and from the on state are essential for effective operation if the SCR is utilized in high-frequency switching applications.
Importance of On-State Conduction State
Efficiency in Power Control: SCRs’ capacity to sustain minimal power losses when in the on state is one of the fundamental justifications for their usage in power control applications. Particularly in circuits with high voltage and high current loads, this results in increased system efficiency overall.
Dependable Current Flow: An SCR’s capacity to sustain steady on-state conduction guarantees a steady current flow to the load, avoiding power supply disruptions. This is particularly crucial in sectors of the economy where machines or lighting systems need steady electricity.
Low heat generation: When the SCR is in the on-state, less energy is wasted as heat since there is less voltage drop across it. This function extends the life of the SCR and the circuit components by lowering the total amount of heat produced inside the system.
SCRs are extensively utilized in both alternating current (AC) and direct current (DC) circuits for control. SCRs guarantee effective power delivery with low losses during the on-state in DC circuits and assist in controlling the power delivered to the load in AC circuits by varying the conduction time.
Factors Affecting the On-State Conduction State
Even though the on-state conduction state is very constant, a number of variables might impact an SCR’s performance in this condition:
Temperature: The SCR’s capacity to conduct effectively may diminish as its temperature rises. Because of this, controlling heat dissipation and making sure that cooling is adequate are essential to preserving SCR performance.
Current Level: As long as the current passing through the SCR does not beyond the holding current, it will only stay in the on state. The SCR will switch off and go back to the off state if the current falls below this threshold.
Device Specifications: The current, voltage, and power dissipation ratings of each SCR are distinct. To prevent overloading the device when it is in the on state, it is crucial to select an SCR that meets the needs of the application.
Turn-off:
Turn-off state of an SCR: What does it mean?
An SCR is said to be in its turn-off condition when it ceases conducting current even when the trigger (gate) signal is still present. After the SCR has been activated (or latching into the conducting state), it enters this state, which stops the current flow from the anode to the cathode.
There are two important aspects to the turn-off state
When the current drops below a specific threshold: The anode current must drop below a specific value known as the holding current in order to shut off the SCR. The minimal current needed to maintain the SCR in its on state is known as the holding current. The SCR will automatically shut off when the current drops below this threshold.
Reverse voltage: Another method of turning off the SCR is to provide a reverse voltage across the anode and cathode. This will turn the device off regardless of the gate signal.
The SCR essentially stops current flow across the circuit in both situations by changing from a conducting to a non-conducting state.
How does an SCR transition to the turn-off state?
Three primary elements impact SCRs:
Gate triggering: When a little current is provided to the gate terminal, the SCR is triggered and starts to conduct.
Anode current: A minimum current (holding current) must go from the anode to the cathode in order for the SCR to function.
Reverse bias or zero crossing: The SCR reaches the turn-off state when the voltage across it is reversed or when the current within it drops below the holding current.
Key points of transition:
Commutation: In certain applications, the SCR is turned off using forced commutation techniques. By altering the voltage or current conditions—for example, by lowering the anode current or delivering a reverse voltage—this method compels the SCR to shut down.
Natural commutation: The SCR automatically cuts off when the current falls below the holding current in AC circuits when the current naturally decreases to zero (for example, during an AC voltage cycle).
Why is the turn-off state important?
In applications where exact control over the power flow is necessary, the turn-off state is crucial. Engineers may create circuits that effectively manage power, cut waste, and guard against system damage by comprehending and managing the turn-off state. The turn-off state’s significance is:
Control in AC circuits: SCRs are used to control phase in alternating current (AC) circuits. The ability to turn off the SCR at the right moment ensures both the efficiency of power transmission and the utilization of the proper phase of the AC signal.
Power Regulation: SCRs aid in regulating how much electricity is supplied to heating elements, motors, and other equipment. By ensuring that electricity may be swiftly cut off when necessary, the turn-off state enhances system stability.
Protection: Overheating and component failure may result if the SCR is let to operate because of malfunction or inadequate control. The circuit can be naturally protected by being in the turn-off condition.
Factors Affecting the Turn-Off State of an SCR
An SCR’s capacity to switch off and stay in the off state is influenced by a number of factors:
Holding Current: As was already indicated, the SCR will automatically cut off if the current falls below the holding current. The holding current value of each SCR varies according to its parameters.
Gate Drive Voltage: Careful management of the gate drive voltage is required. Even with a modest current flowing through the device, the SCR can stay in the on state if the gate’s current is steady.
Temperature: The SCR’s ability to shut off may be impacted by the operating temperature. The holding current may drop as the temperature rises, which would facilitate the SCR’s shut-off. Excessive heat, meanwhile, might potentially harm the gadget.
Reverse voltage: The SCR may not switch off correctly and may sustain damage if it is exposed to a reverse voltage higher than its breakdown voltage.
Applications of SCRs and Turn-Off States
Several industries use SCRs and their turn-off states:
Motor control: SCRs are frequently employed in applications involving motor speed control. Controlling the power provided to the motor is made easier by the ability to precisely turn the SCR on and off.
Phase control in AC circuits: SCRs are crucial for applications including variable frequency motors, dimmers, and AC power controllers. Effective control of AC power is made possible by the turn-off state.
Power Switching and Protection: SCRs aid in the protection and switching of high-power circuits in power supply systems. The SCR will shut down as necessary to safeguard delicate components thanks to the turn-off state.
Light Control Systems: By varying the amount of time that current flows, SCRs in lighting systems regulate the brightness of lights and switch them off when the time is appropriate.
Components of an Silicon controlled rectifier
An SCR consists of several essential components:
Anode:
Anode component of SCR
The positive terminal of an SCR that receives an external load is called the anode. The p-type layer (anode side) of the SCR is formed by the anode, which is composed of a semiconductor material. It is essential to the device’s general operation and the current conduction process.
Function of the anode
When an SCR is in the on state, its anode’s primary job is to create a path for current to flow. A current starts to move from the anode to the cathode when the gate triggers the SCR, enabling the device to conduct. The SCR stays “on” after current starts to flow until it is stopped, generally by cutting the power supply or lowering the current to a level lower than the holding current.
In order to prevent the SCR from conducting when it shouldn’t, the anode is also where a reverse blocking voltage is applied in specific circumstances. This keeps the gadget from breaking down or malfunctioning.
Importance of Anode in SCR
Current Conduction: The anode is necessary for current to flow through the SCR while it is in the “on” state. As the current moves from the anode to the cathode, the device may regulate electrical power.
High voltage levels are necessary for many commercial and industrial applications, and the anode is made to withstand them. The SCR’s dependability and efficiency in power regulation systems are influenced by its capacity to tolerate high voltages.
Heat Dissipation: The anode produces heat as it conducts electricity. To avoid thermal damage, the anode must be built with efficient heat dissipation in mind. To maintain the device at a safe working temperature, high thermal conductivity materials and a heat sink must be included.
Reverse Blocking: An SCR’s anode helps shield the device from harm caused on by reverse current flow by blocking reverse voltage. When the SCR is in the off state, the anode makes sure that it stays inactive when reverse voltage is supplied.
Materials Used in the Anode
Silicon, a semiconductor material that gives the device the required electrical characteristics, is commonly used to make the anode component of an SCR. Silicon is preferred due to its excellent efficiency, affordability, and resistance to high temperatures and voltages.
Although silicon is the most widely utilized material in SCR manufacture, other materials like germanium or gallium nitride may be employed in more specialized applications for certain performance needs.
Anode and SCR Performance
An SCR’s performance is directly impacted by its anode properties. The anode’s size, structure, and design all affect the device’s voltage and current ratings, switching speed, and thermal efficiency.
Thermal Management: The anode produces heat as a result of carrying electricity. Maintaining the SCR’s functionality and lifespan requires efficient heat dissipation techniques, such as external cooling systems or inbuilt heat sinks.
Voltage Rating: To make sure the SCR can withstand the necessary operating voltage without malfunctioning, the anode’s voltage rating is crucial. Stronger anode designs in higher voltage SCRs guard against failure under high loads.
Applications of SCRs and the Role of the Anode
SCRs are used in many different applications where effective switching and excellent power management are crucial. For these applications to function properly, the anode component is essential. The following are some significant areas where SCRs are often utilized:
1-AC Power Control
SCRs are frequently used to regulate AC power in a number of applications, such as temperature control, motor speed control, and light dimming. The anode is perfect for these kinds of operations because it permits a regulated current flow.
2-DC Motor Control
SCRs function in controlling the power sent to motors in DC motor control, guaranteeing effective functioning. By promoting steady current flow, the anode lowers energy loss and enhances motor control.
3-Power Supplies and Voltage Regulators
SCRs play a crucial role in voltage regulation circuits, which regulate current flow to assist maintain a steady output voltage. The capacity of the anode to handle voltage guarantees that the SCR can control fluctuating input voltages.
4-Pulse Circuits
Pulse circuits for high-speed switching applications also employ SCRs. The right timing and current flow needed for these high-speed activities are partially ensured by the anode.
5-Phase Control
The anode of the SCR is crucial for preserving voltage and current synchronization in systems where exact phase control is necessary, such as phase-controlled rectifiers.
Cathode:
The Role of the Cathode in an SCR
One of the most important parts of an SCR is the cathode. It serves as the negative terminal of the device, or the reference point for current flow. When the SCR will conduct electricity is determined by the interaction between the cathode, anode, and gate. The function of the cathode breaks down as follows:
Electrical Connection Point: In an SCR circuit, the cathode acts as the return channel for current. When the device is in the “on” state, current flows from the anode to the cathode. Only when the voltage at the anode is higher than that at the cathode will the device conduct.
Control of Conduction State: The SCR remains in a non-conducting state until a trigger signal is applied to the gate, which initiates the flow of current from the anode to the cathode. Once triggered, the SCR will continue to operate until the current drops below a certain level, turning it off.
Anode-Cathode Voltage Relationship: The conductivity of an SCR is determined by the voltage difference between the anode and cathode. For current to flow from the anode to the cathode, this voltage must be positive. The SCR will turn off if the voltage is reversed, meaning the cathode becomes more positive than the anode.
How does the cathode affect the performance of an SCR?
The cathode plays a critical role in determining the overall performance and efficiency of an SCR in an electrical circuit. Here are a few ways in which the cathode component affects the operation of an SCR:
Current Handling: The cathode, along with the anode, is responsible for carrying the current passing through the SCR. The design and material of the cathode determine the maximum current that can safely pass through the device. High-current SCRs use cathodes made of materials that can handle large amounts of electrical power without degrading over time.
Thermal Management: The cathode, like the anode, dissipates heat generated during the conduction process. Effective thermal management is essential to prevent the SCR from overheating. Appropriate heat sinks and thermal interfaces are often used to improve heat dissipation in the cathode.
Voltage Rating: The voltage rating between the anode and cathode determines the SCR’s ability to withstand electrical stress. SCRs with higher voltage ratings are able to operate in more demanding environments, such as industrial machinery or power grids.
Recovery Time: The cathode contributes to the device’s recovery period after the SCR is turned off. The material properties and design of the cathode affect the SCR’s ability to turn off quickly and its resistance to problems such as reverse recovery, which can result in inefficiency in high-speed switching applications.
Gate:
The Role of the Gate in an SCR
The gate terminal in an SCR is crucial for controlling the switching behavior of the device. While the anode and cathode terminals are responsible for carrying current, the gate controls the on and off states of the SCR.
Here’s how it works:
Turning the SCR on: When a small voltage is applied to the gate, it causes a current to flow between the anode and cathode. This current triggers the SCR to fully conduct, allowing current to flow from the anode to the cathode. Once the SCR is turned on, it remains in a conductive state even if the gate signal is removed, as long as the current flow is not interrupted.
Turning the SCR off: The SCR will continue to operate until the current through it falls below a certain threshold (called the holding current). This usually occurs when the AC cycle crosses zero voltage, or the circuit is intentionally disturbed.
In short, the gate allows the SCR to be triggered into conduction with a small control signal, making it highly efficient for power control and switching applications.
Types of Gate Triggering Methods
The gate can be used in a variety of triggering methods depending on the specific application and desired operation. Some common methods include:
Positive Gate Triggering: A positive voltage is applied to the gate to initiate conduction. This method is simple and commonly used in standard SCR applications.
Negative Gate Triggering: A negative voltage is applied to the gate, which can be useful in circuits where a negative pulse is required to turn on the SCR. This method is less common but offers specific advantages for some applications.
Pulse Triggering: Short duration voltage pulses are applied to the gate to initiate conduction. Pulse triggering is often used for precise control in high-frequency switching applications.
Gate characteristics and parameters
The performance of an SCR is greatly influenced by the characteristics of the gate component. Some key gate parameters include:
Gate current (Ig): This is the current that flows through the gate to turn on the SCR. SCRs require a minimum gate current. If this is not met, the device cannot switch continuously.
Gate trigger voltage (Vgt): This is the minimum voltage that must be applied to the gate to initiate conduction. This is a critical parameter to ensure that the SCR turns on correctly.
Gate sensitivity: This refers to the SCR’s response to an applied gate signal. A more sensitive SCR requires less current to trigger it, while a less sensitive one requires more current.
SCR gate control applications
Gate control of SCRs enables a wide range of applications where efficient power management and control are essential. Some key applications include:
AC Power Control: SCRs are widely used in devices that control the flow of alternating current (AC), such as light dimmers, motor speed controllers, and heating systems. Gate control allows these devices to precisely regulate the amount of power delivered to a load.
Overvoltage Protection: In power systems, SCRs are used to protect circuits from voltage spikes. The gate can trigger the SCR to conduct when overvoltage conditions are detected, removing excess voltage and protecting sensitive equipment.
Phase-Controlled Rectifiers: SCRs are commonly used in phase-controlled rectifiers, which convert AC to DC with an adjustable output voltage. The gate phase angle, and consequently, enables precise control over the output voltage.
Pulse Width Modulation (PWM): SCRs are essential for power electronics circuits that use PWM for efficient power delivery, including power supplies, motor control, and renewable energy systems such as solar inverters.
Overcurrent Protection: SCRs with gate control are used in protection circuits to handle overcurrent conditions. They can be turned on or off to protect the load from excessive current.
Silicon controlled rectifier applications
SCRs are essential in a wide range of power electronic applications. Some common uses include:
1-Phase Control Rectifiers (AC-DC Converters)
SCRs are frequently used in phase-controlled rectifiers to convert alternating current (AC) to direct current (DC). By adjusting the phase angle at which the SCRs are energized, the output voltage can be controlled with greater precision.
2-Motor Speed Control
SCRs are used to control the speed of DC motors and AC motors. By controlling the power delivered to the motor, SCRs allow for smooth speed regulation, making them ideal for industrial machinery.
3-Light Dimming
In lighting systems, SCRs help control brightness by controlling the amount of power supplied to a light bulb. It is commonly used in dimmers for domestic and commercial lighting.
4-AC Voltage Regulation
In AC voltage regulators, SCRs ensure that, despite variations in input voltage, the voltage delivered to the load is constant. This application is important in industries where stable voltage is important.
5-Overvoltage Protection
SCRs are used in circuits for overvoltage protection. In the event of a voltage surge, SCRs can immediately shut down the power supply, protecting sensitive components.
6-Uninterruptible Power Supply (UPS)
In UPS systems, SCRs are used to efficiently switch between different power sources, ensuring continuous power supply even in the event of a power failure.
Advantages of silicon controlled rectifier
SCRs are widely used in power electronics due to their many advantages:
Large power handling:
SCRs are suitable for power conversion and regulation applications because of their ability to handle large currents and voltages.
Efficient Control:
They offer precise control over power delivery, allowing for efficient energy use and minimizing waste.
Fast Switching:
SCRs are essential for high-speed applications such as phase-controlled rectifiers and motor control because of their instant switching capabilities.
Compact and Reliable:
SCRs are durable and can operate for a long lifespan, making them a reliable choice for industrial power systems.
Low Power Loss:
When operating in their on state, SCRs exhibit minimal power losses, ensuring efficient energy conversion.
